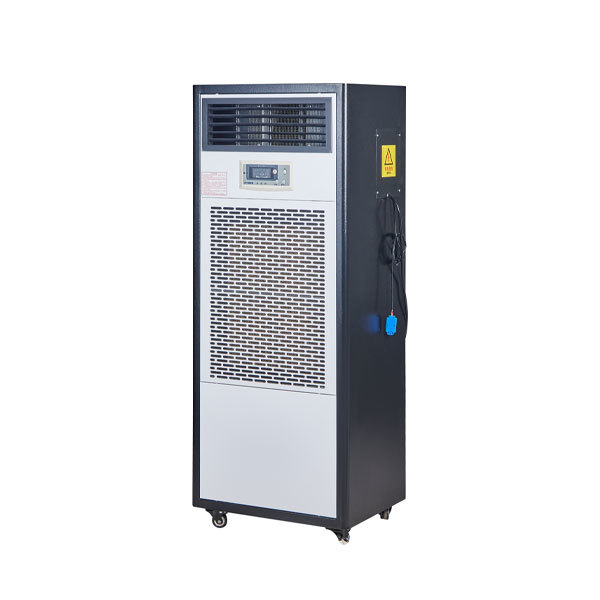

XH-808M Humidifier

Constant Temperature and Humidity Control System: Used for temperature and humidity control in laboratories, industrial and mining enterprises, hospitals, archives, etc.

Classification :

Temperature And Humidity Chambers

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Product Functions

Constant Temperature and Humidity Control System: Used for temperature and humidity control in laboratories, industrial and mining enterprises, hospitals, archives, etc.

Product Introduction

Water that passes through the filter is transported to the top of the humidifying membrane via pipes, and then distributed by the water distributor to ensure uniform water flow to the top of the membrane. Driven by gravity, the water seeps down along the humidifying membrane material, moistening the entire membrane. When dry air flows through the humidifying membrane, it comes into full contact with the water—heat in the air is absorbed by the vaporized water, increasing the air humidity and producing humid air that is discharged.

Product Parameters

-	Item	Specification
-	Model	XH-808M
-	Power Supply	220V～/ 50 Hz
-	Operating Temperature Range	1 - 40℃
-	Humidification Capacity	3-8 kg/h
-	Control Mode	Automatic
-	Water Tank Capacity	35 L
-	Maximum Input Power	300 W
-	Maximum Input Current	1.5 A
-	Weight	50 kg
-	Overall Dimensions	560×420×1420 mm

Product Configuration

Serial No.	Accessory Name	Brand/Description	Quantity
1	Main Unit	Jianke	1 unit
2	Equipment Documents	Instruction manual, certificate of qualification, packing list	1 set

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables
