XH-808M

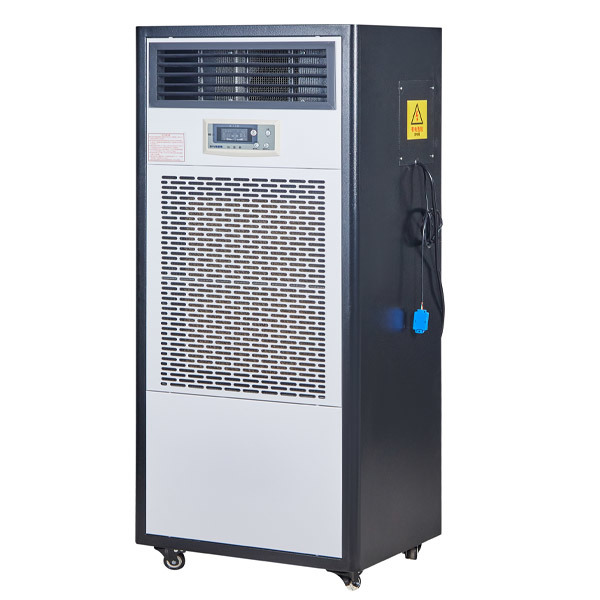

Constant temperature and humidity control system is designed for temperature and humidity control in inspection and testing laboratories (such as concrete laboratories, concrete mechanics laboratories, cement laboratories, waterproof membrane laboratories, coating laboratories, thermal insulation material laboratories, etc.). It can also be used for temperature and humidity control in industrial and mining enterprises, hospitals, archives, etc., featuring high control precision and good uniformity.

Classification :

Test Environment Temperature and Humidity

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Product Features:

Humidity control: Automatically controlled by a 7-inch true color touch screen controller, allowing free setting and control (the computer board has a power-off memory function).

Temperature control: The 7-inch true color touch screen controller wirelessly connects to the existing air conditioner in the laboratory to achieve automatic control.

Defrosting function: Microcomputer intelligent control with automatic defrosting, suitable for low-temperature environments.

Compressor: Adopts Hitachi brand rotary compressor with low noise, reliable operation and high energy efficiency ratio.

Power supply: Uses 220V power supply, equipped with compressor three-minute delay protection, sensor failure indication with error codes and other devices.

Water filling method: Dual-purpose of manual water filling and connecting to tap water pipe.

Humidification method: Uses high-efficiency wet curtain for better humidification effect.

Humidification water tank: Made of stainless steel with a capacity of 20 liters.

Refrigeration system: Adopts high-efficiency copper sleeve aluminum fin heat exchanger, which has a compact structure, good pressure resistance and high heat exchange efficiency.

Fan design: Uses a special centrifugal fan system for air conditioners, featuring large air volume, low friction, low noise and long service life.

Water inlet/outlet method: Automatic water inlet/continuous drainage.

Communication method: 485 communication, with communication protocol provided.

Movement method: Equipped with universal wheels at the bottom.

Product Parameters:

Serial Number	Item	HWHS-50	HWHS-100
1	Maximum dehumidification capacity	20 liters/day	50 liters/day
2	Maximum humidification capacity	1.5kg/hour	3kg/hour
3	Humidification method	Wet membrane humidification
4	Humidification water tank capacity	20L	30L
5	Maximum control area	≤40m² (slightly variable according to on-site conditions)	≤80m² (slightly variable according to on-site conditions)
6	Water inlet method	Manual water filling (manual filling of water tank, automatic) + automatic water inlet (connected to tap water, 4-point external thread)
7	Drain outlet	4-point external thread
8	Air inlet and outlet method	Front air inlet, top air outlet	Front air inlet, top air outlet
9	Circulating air volume	300 m³/h	600 m³/h
10	Maximum power	1100W
11	Refrigerant model	R22
12	Overall dimensions	5805361615mm	8054501655mm
13	Operating environment temperature	5～38℃
14	Power supply	AC220V/50Hz
15	Net weight	≈50KG	≈70KG

Product Configuration:

Serial Number	Accessory Name	Brand	Quantity
1	Main unit	Jianke	1 set
2	Equipment files	Instruction manual, certificate of conformity, packing list	1 set

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables

CERTIFICATES

Software Registration No.11208041

Pressure Testing Machine Embedded System V1.0

Soft Registration No.11208039

Constant Temperature and HumiditySystem Control Software V1.0

A Kind of Door andWindow Performance Testing Equipment

A Concrete lmpermeability Test Device

A Temperature and Humidity Control Device

A Hydraulic Universal Testing Machine
