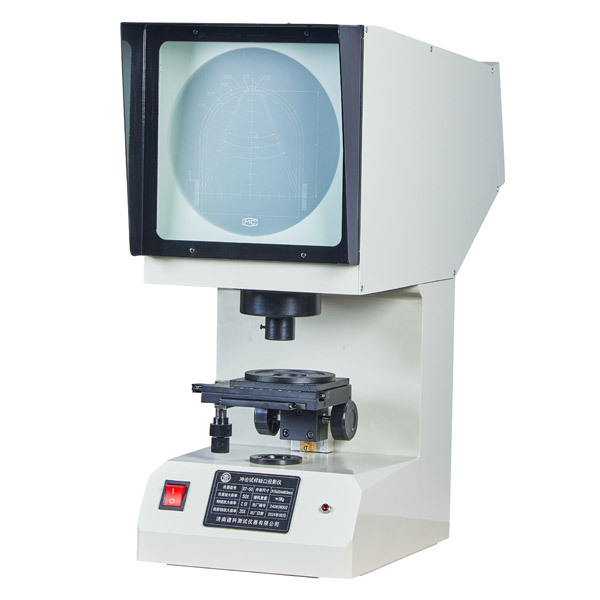

XT-50 Impact Specimen Notch Projector

A dedicated optical instrument used to determine whether the V-type and U-type notches of metal impact specimens are qualified.

Classification :

Steel Plate Bolt Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

A dedicated optical instrument used to determine whether the V-type and U-type notches of metal impact specimens are qualified.

Standards Compliance:

GB/T 229 Metallic Materials - Charpy Notch Impact Test Method

Product Parameters:

Serial Number	Item	Technical Indicators
1	Projection screen diameter	180mm
2	Square worktable size	110×125mm
3	Circular worktable diameter	90mm
4	Worktable glass diameter	70mm
5	Worktable longitudinal stroke	±10mm
6	Worktable transverse stroke	±10mm
7	Worktable lifting stroke	±12mm (without scale)
8	Worktable rotation range	0~360° (without scale)
9	Instrument magnification	50X
10	Objective lens magnification	2.5X
11	Projection objective magnification	20X
12	Light source (tungsten halogen lamp)	12V, 100W
13	Power supply	220V, 50Hz
14	Overall dimensions	515×224×603mm
15	Weight	≈18Kg

Product Configuration (Subject to final order):

Serial Number	Item	Model	Quantity
1	Main machine		1 set
2	Power cord		1 piece
3	Adjustable feet		4 pieces
4	Lens		1 piece
5	Halogen lamp		2 pieces
6	Fuse tube		2 pieces
7	Equipment files	Instruction manual, certificate of conformity, packing list	1 set

The Impact Specimen Notch Projector sets a new benchmark for precision in material testing laboratories. This advanced optical instrument is meticulously engineered to magnify and precisely project the profile of notches on impact test specimens, such as Charpy or Izod bars. It eliminates the guesswork and potential human error associated with traditional visual inspection, ensuring that every specimen is evaluated against the most stringent dimensional standards before testing. By providing a clear, enlarged image, this projector is an indispensable tool for guaranteeing the initial quality and consistency of your samples.

At the heart of its operation, the Impact Specimen Notch Projector utilizes a high-resolution lens system and collimated light source to cast a sharp, shadow-free image of the specimen's notch onto a calibrated viewing screen. Operators can easily compare the magnified profile against precise tolerance templates, allowing for rapid and accurate assessment of notch depth, angle, and root radius. The robust construction of the Impact Specimen Notch Projector ensures stability and longevity, even in demanding industrial environments. Its user-friendly design minimizes setup time and requires minimal operator training, seamlessly integrating into your quality control workflow.

Integrating the Impact Specimen Notch Projector into your preparation process directly enhances the reliability and accuracy of your impact test results. A correctly prepared notch is critical, as any imperfection can significantly alter the fracture mechanics and skew the energy absorption data. By verifying this key variable with our projector, you ensure that your material toughness data is both valid and reproducible. For any laboratory committed to data integrity and superior quality assurance, the Impact Specimen Notch Projector is not just an accessory; it is a fundamental component for achieving uncompromising precision and trust in your results.
