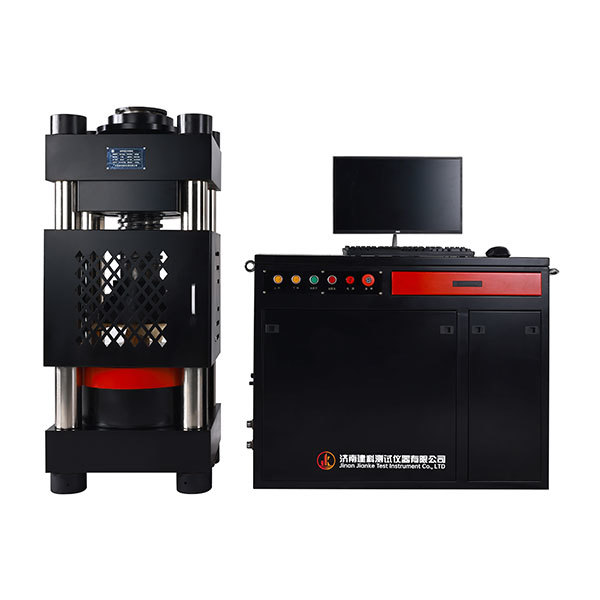

YAW-2000D/YAW-3000D/YAW-5000D Automatic Manhole Cover Pressure Testing Machine

The microcomputer-controlled electro-hydraulic servo pressure testing machine adopts a split design of the main body and oil source. It is suitable for compression tests of materials such as cement and concrete. It is an ideal testing instrument for industrial and mining enterprises, commodity inspection and arbitration institutions, scientific research units, colleges and universities, engineering quality supervision stations and other departments.

Classification :

Hydraulic pressure testing machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Purpose:

Standards Compliance:

GB/T 2611: General Technical Requirements for Testing Machines
GB/T 50081: Standard for Test Methods of Mechanical Properties of Ordinary Concrete
JJG 139: Verification Regulation of Tension, Compression and Universal Testing Machines
GB/T 50081-2019: Standard for Test Methods of Mechanical Properties of Ordinary Concrete
SL 352-2012: Specification for Testing of Hydraulic Concrete
GB/T 50107-2010: Standard for Inspection and Evaluation of Concrete Strength
GB 50164-2011: Standard for Quality Control of Concrete
GB/T 8239-2014: Small-sized Ordinary Concrete Blocks
GB/T 4111-2013: Test Methods for Small Hollow Concrete Blocks
GB/T 15229-2011: Lightweight Aggregate Concrete Small Hollow Blocks
GB/T 28635-2012: Concrete Paving Blocks
GB/T 11968-2006: Autoclaved Aerated Concrete Blocks
GB/T 13544-2011: Fired Perforated Bricks and Perforated Blocks
GB/T 2542-2012: Test Methods for Masonry Bricks
GB/T 13545-2014: Fired Hollow Bricks and Hollow Blocks
GB/T 5101-2017: Fired Common Bricks
JGJ/T 294-2013: Technical Specification for Strength Testing of High-Strength Concrete
(Not listed in detail; can be added as needed)

Product Features:

The main machine adopts a four-column structure with high rigidity.
The equipment is equipped with a protective net as standard to ensure test safety.
The upper pressure plate adopts an electric lifting method for convenient testing.
Computer-controlled with storable data and network connectivity.

Main Specifications:

Item	YAW-2000D	YAW-3000D	YAW-5000D
Maximum test force of testing machine	2000KN	3000KN	5000KN
Accuracy class	colspan="3"	Class 1
Maximum net compression space	320mm	360mm	360mm
Inner width of test space	330mm	330mm	550mm
Maximum piston stroke	50mm	70mm	200mm
Power supply	colspan="3"	380V
Main machine dimensions (L×W×H)	540×675×1300mm	540×675×1300mm	900×600×1660mm
Oil source dimensions (L×W×H)	colspan="3"	1000×550×800mm
Net weight	800kg	2000kg	3300kg

Product Configuration (Subject to final order):

Serial Number	Name	Description	Quantity
1	Frame-type main machine	Integrally cast	1 unit
2	Servo oil source	-	1 set
3	Sensor	2000KN/3000kN/5000kN	1 piece
4	Computer	Branded	1 unit
5	Keyboard and mouse	Wireless	1 set
6	Measurement and control software	Pre-installed in the computer	1 set
7	Instruction manual and certificate	Chinese/English	1 set
