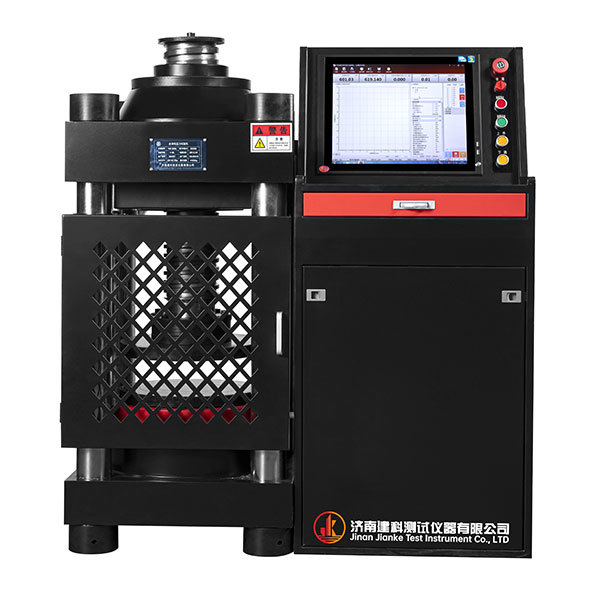

YAW-2000D/YAW-3000D Automatic Manhole Cover Pressure Testing Machine

This series of testing machines is suitable for compressive strength tests of cement, concrete, and rock. With appropriate fixtures and measuring devices, it can meet the requirements of concrete splitting tests, flexural tests, and static elastic modulus tests.

Classification :

Hydraulic pressure testing machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

General Function Description:

Compliance Standards:

GB/T 2611: General Technical Requirements for Testing Machines
GB/T 50081: Standard for Test Methods of Mechanical Properties of Ordinary Concrete
JJG 139: Verification Regulation of Tension, Compression and Universal Testing Machines
GB/T 50081-2019: Standard for Test Methods of Mechanical Properties of Ordinary Concrete
SL 352-2012: Specification for Testing of Hydraulic Concrete
GB/T 50107-2010: Standard for Inspection and Evaluation of Concrete Strength
GB 50164-2011: Standard for Quality Control of Concrete
GB/T 8239-2014: Small-sized Ordinary Concrete Blocks
GB/T 4111-2013: Test Methods for Small Hollow Concrete Blocks
GB/T 15229-2011: Lightweight Aggregate Concrete Small Hollow Blocks
GB/T 28635-2012: Concrete Paving Blocks
GB/T 11968-2006: Autoclaved Aerated Concrete Blocks
GB/T 13544-2011: Fired Perforated Bricks and Perforated Blocks
GB/T 2542-2012: Test Methods for Masonry Bricks
GB/T 13545-2014: Fired Hollow Bricks and Hollow Blocks
GB/T 5101-2017: Fired Common Bricks
JGJ/T 294-2013: Technical Specification for Strength Testing of High-Strength Concrete
(Not listed in detail; can be added as needed)

Product Features:

The main machine adopts a four-column structure with high rigidity, integrated design, and small footprint.
The equipment is equipped with a protective net as standard to ensure test safety.
The upper pressure plate adopts an electric lifting method for convenient testing.
Computer-controlled with storable data and network connectivity.

Product Parameters:

Item	YAW-2000D	YAW-3000D
Maximum test force of testing machine	2000KN	3000KN
Accuracy class	colspan="2"	Class 1
Maximum net compression space	320mm	360mm
Inner width of test space	330mm	330mm
Maximum piston stroke	50mm	70mm
Power supply	colspan="2"	380V
Overall dimensions (L×W×H)	1050×615×1350mm	1150×75×1550mm
Net weight	800kg	1200kg

Product Configuration (Subject to final order):

Serial Number	Name	Description	Quantity
1	Frame-type main machine	Integrally cast	1 unit
2	Servo oil source	-	1 set
3	Sensor	2000KN/3000kN	1 piece
4	Computer	Branded	1 unit
5	Keyboard and mouse	Wireless	1 set
6	Measurement and control software	Pre-installed in the computer	1 set
7	Instruction manual and certificate	Chinese/English	1 set
