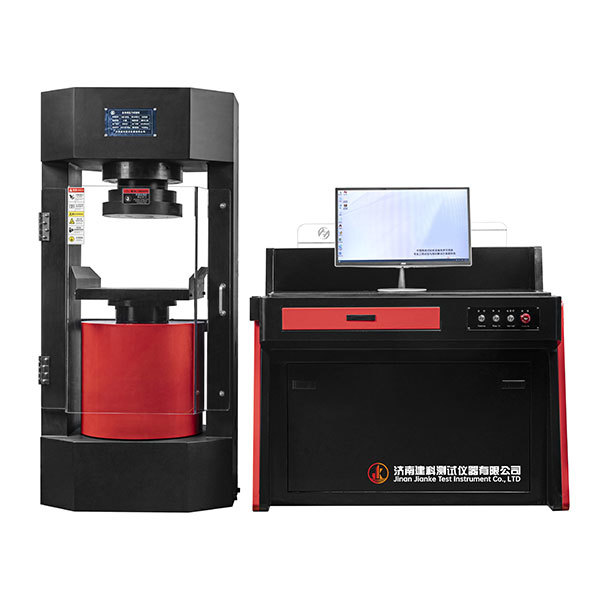

YAW-2000DS/YAW-3000DS Automatic Manhole Cover Pressure Testing Machine
Classification :
PRODUCT DETAILS
Purpose:
The microcomputer-controlled electro-hydraulic servo pressure testing machine adopts a split design of the main body and oil source. It is suitable for compression tests of materials such as cement and concrete. It is an ideal testing instrument for industrial and mining enterprises, commodity inspection and arbitration institutions, scientific research units, colleges and universities, engineering quality supervision stations and other departments.
Standards Compliance:
- GB/T 2611: General Technical Requirements for Testing Machines
- GB/T 50081: Standard for Test Methods of Mechanical Properties of Ordinary Concrete
- JJG 139: Verification Regulation of Tension, Compression and Universal Testing Machines
- GB/T 50081-2019: Standard for Test Methods of Mechanical Properties of Ordinary Concrete
- SL 352-2012: Specification for Testing of Hydraulic Concrete
- GB/T 50107-2010: Standard for Inspection and Evaluation of Concrete Strength
- GB 50164-2011: Standard for Quality Control of Concrete
- GB/T 8239-2014: Small-sized Ordinary Concrete Blocks
- GB/T 4111-2013: Test Methods for Small Hollow Concrete Blocks
- GB/T 15229-2011: Lightweight Aggregate Concrete Small Hollow Blocks
- GB/T 28635-2012: Concrete Paving Blocks
- GB/T 11968-2006: Autoclaved Aerated Concrete Blocks
- GB/T 13544-2011: Fired Perforated Bricks and Perforated Blocks
- GB/T 2542-2012: Test Methods for Masonry Bricks
- GB/T 13545-2014: Fired Hollow Bricks and Hollow Blocks
- GB/T 5101-2017: Fired Common Bricks
- JGJ/T 294-2013: Technical Specification for Strength Testing of High-Strength Concrete
- (Not listed in detail; can be added as needed)
Product Features:
- Made of integrated high-strength structure with precision machining, featuring super rigidity to ensure the stability of the testing machine.
- Equipped with high-precision Class 0.5 load sensor, with high accuracy, good repeatability, and excellent long-term stability.
- Transparent explosion-proof safety net ensures visibility and safety during the test.
- Low-pressure bidirectional oil cylinder guarantees durability and stability under various working conditions.
- Commercial desktop computer with a unique SmartTest operating interface for a smooth user experience.
- The cabinet can be optional as horizontal or vertical according to customer needs.
- The hydraulic system is equipped with a servo motor and radial piston pump, with ultra-low noise, slow oil temperature rise, high efficiency and stability. The test process is quiet, providing a quiet environment for the laboratory. It uses 220V household electricity for power supply, which is energy-saving and environmentally friendly.
- Additionally, matched with a large-displacement auxiliary gear pump, greatly improving work efficiency.
Main Specifications:
| Item/Index/Model | YAW-2000DS | YAW-3000DS |
|---|---|---|
| Maximum test force of testing machine | 2000kN | 3000kN |
| Accuracy class | colspan="2" | Class 0.5 |
| Relative error of test force indication | colspan="2" | Within ±0.5% |
| Test force measurement range | colspan="2" | 1%～100%FS |
| Maximum net compression space | 320mm | 340mm |
| Effective test width | 360mm | 400mm |
| Maximum piston stroke | colspan="2" | 200mm |
| Size of upper and lower pressure plates | colspan="2" | Φ300mm |
| Power supply | colspan="2" | 220V±10% 50Hz；2.3kW |
| Main machine dimensions (L×W×H) | 6004501270mm | 7005001500mm |
| Oil source cabinet dimensions (L×W×H) | colspan="2" | 1100×400×1250mm |
| Net weight | 1300kg | 2300kg |
Product Configuration (Subject to final order):
| Serial Number | Name | Description | Quantity |
|---|---|---|---|
| 1 | Frame-type main machine | Integrally cast | 1 unit |
| 2 | Servo oil source | Console type | 1 set |
| 3 | Sensor | 2000KN/3000kN | 1 piece |
| 4 | Computer | Branded | 1 unit |
| 5 | Keyboard and mouse | Wireless | 1 set |
| 6 | Measurement and control software | Pre-installed in the computer | 1 set |
| 7 | Instruction manual and certificate | Chinese/English | 1 set |
