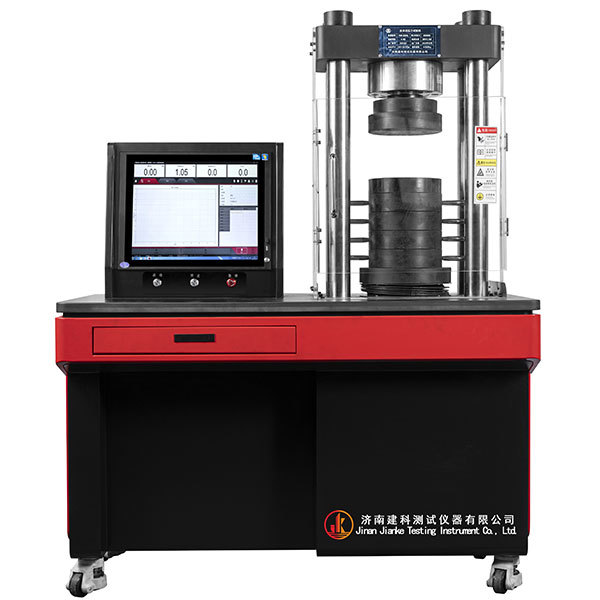

YAW-300/YAW-600/YAW-1000 Fully Automatic Manhole Cover Pressure Testing Machine
Classification :
PRODUCT DETAILS
Applications:
This testing machine is suitable for compressive, flexural, and shatterproof strength testing of building materials such as mortar, hollow bricks, cement, cement products, refractory bricks, concrete, engineering ceramics, engineering plastics and their products, stone, and wood.
Based on standards:
GB/T 2611 General technical requirements for testing machines
GB/T 50081 Standard for Test Methods of Mechanical Properties of Ordinary Concrete
JJG 139 Verification Procedures for Tensile, Compression, and Universal Testing Machines
GB/T 50081-
SL 352-2012 Test Procedure for Hydraulic Concrete
GB/T 50107-
GB 50164-2011 Concrete Quality Control Standard
GB/T 8239-2014 Ordinary Concrete Small Masonry Units
GB/T 4111-2013 Test Methods for Small Concrete Hollow Masonry Units
GB/T 15229-2011 Lightweight Aggregate Concrete Small Hollow Blocks
GB/T 28635-2012 Concrete Pavement Bricks
GB/T 11968-2006Autoclaved Aerated Concrete Blocks nt>
GB/T 13544-2011 Sintered porous bricks and porous masonry blocks
GB/T 2542-2012 Test methods for masonry bricks
GB/T GB/T 13545-2014 Sintered Hollow Bricks and Hollow Blocks GB/T 5101-2017 Sintered Ordinary Bricks JGJ/T 294-2013 Technical Specification for Strength Testing of High-Strength Concrete GB/T 5101-2017 Sintered Ordinary Bricks JGJ/T 294-2013 Technical Specification for Strength Testing of High-Strength Concrete GB/T 5101-2017 Sintered Ordinary Bricks JGJ/T 294-2013 Technical Specification for Strength Testing of High-Strength Concrete GB/T 17671-2021 Cement Mortar Strength Test Method
Not listed in detail Additions are optional
Product Features:
Four-column structure provides strong rigidity and stable testing. The compression and flexural resistance of the integral frame platen is fully electroplated for an attractive appearance.
Touchscreen industrial computer with a uniqueSmartTestuser interface provides a smooth user experience
High-precision load cell
Transparent explosion-proof safety nets on three sides ensure visibility and safety during testing.
Laboratory-grade countertop: waterproof, moisture-proof, corrosion-resistant, scratch-resistant, and exceptionally durable.
The hydraulic system, equipped with a servo motor and radial piston pump, delivers ultra-low decibels, high efficiency, and stability. Testing is quiet, creating a peaceful lab environment. Powered by 220V household electricity, it's energy-efficient and environmentally friendly. Extremely large compression chamber, with modular spacers for adjusting the test volume.
Multi-functional casters make the machine easy to move and quickly put into place.
Main Specifications:pan>
| Project/Indicator/Model | YAW-300 | YAW-600 | YAW-1000 |
| Maximum Test Force of Testing Machine | 300kN | 600kN | 1000kN |
| Testing Machine Accuracy Level | 0.5 Level | ||
| Test Force Measurement Range | 0.5% - 100% FS | ||
| Relative error of test force indication | Within ±0.5% | ||
| Test force resolution | 1/±300,000 of the maximum test force, resolution unchanged throughout the entire range | ||
| Cylinder structure | One-way cylinder | ||
| Maximum piston stroke | 80mm | ||
| Piston speed adjustment range | Speed adjustment range: 6-30mm/min | ||
| Upper and Lower Platen Dimensions | 160mm (1/4") | 400*300mm | |
| Test Items | Mortar Compression Strength | Compression Strength Test of Bricks, Tiles, Mortar, Wallboard, Blocks, Stone, etc. | |
| Test Space | Maximum Test Width 220mm, Maximum Compression Space 187mm | Maximum Test Width 300mm, Maximum Compression Space 320mm | |
| Power Supply | 220V ±10%, 50Hz; 0.75kW | ||
| Machine Dimensions | 970×675×1450mm | 1200×630×1550mm | |
| Net Weight | 500kg | 650kg | 750kg |
Product Configuration (Subject to final order):
| Serial Number | Name | Description | Quantity |
| 1 | Integrated Host | Four-column | 1 unit |
| 2 | Servo controller | Servo type | 1 set |
| 3 | Servo oil source | 1 set | |
| 4 | Sensor | 300kN/600kN/1000kN | 1 unit |
| 5 | Industrial computer | Brand | 1 unit |
| 6 | Cushion | Combination | 1 set |
| 7 | Keyboard and mouse | 1 set | |
| 8 | Measurement and control software | Pre-installed on the computer | 1 set |
| 9 | Instruction manual and certificate of conformity | Chinese/English | 1 set |
