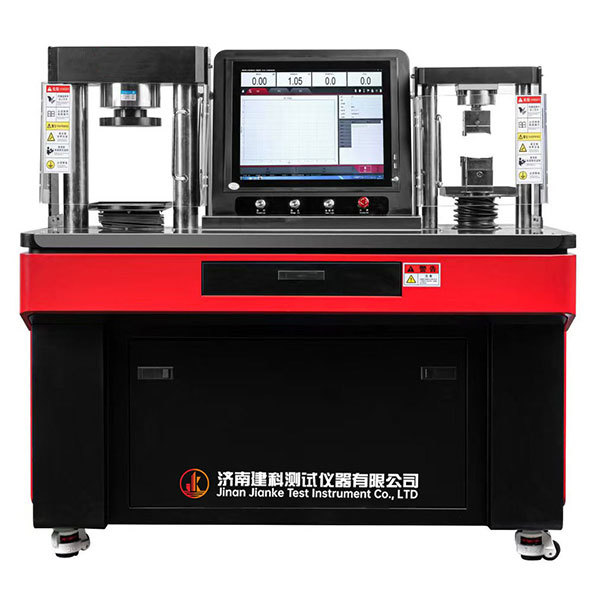

YAW-300C Fully Automatic Manhole Cover Pressure Testing Machine

Microcomputer-controlled integrated compressive and flexural testing machine. The compressive part adopts a two-column structure, and the flexural part uses an electric cylinder. It features control modes such as constant speed test force, constant speed stress, and test force maintenance. The product has the characteristics of high precision, superior performance, high reliability, and easy operation.

Classification :

Hydraulic pressure testing machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

General Function Description:

Compliance Standards:

GB/T 17671 "Test Method for Strength of Cement Mortar"
GB/T 16825.1 "Verification of Static Uniaxial Testing Machines - Part 1: Verification and Calibration of Force Measuring Systems for Tension and/or Compression Testing Machines"

Product Features:

Brand computer with a unique SmartTest operating interface for a smooth user experience.
Both compressive and flexural parts adopt a two-column structure, meeting test performance requirements while making the equipment highly cost-effective.
The compressive loading adopts a single-acting hydraulic cylinder structure.
Transparent explosion-proof safety net ensures visibility and safety during testing.
Forklift position design for convenient transportation and quick positioning.
300kN and 10kN high-precision load sensors.
Flexural loading uses an electric cylinder to ensure test accuracy and speed.

Product Parameters:

Parameter	Flexural	Compressive
Maximum test force of the testing machine	10000N	300kN
Accuracy class of the testing machine	colspan="2"	Class 0.5
Test force measurement range	colspan="2"	0.5%—100%FS
Relative error of test force indication	colspan="2"	Within ±0.5%
Test force resolution	colspan="2"	1/±300000 of the maximum test force, with constant resolution throughout the range
Piston speed adjustment range	colspan="2"	6—80mm/min
Maximum piston stroke	60mm	80mm
Cylinder structure	Electric cylinder	Single-acting hydraulic cylinder
Power supply	colspan="2"	380V±10% 50Hz; 1.1kW
Effective compressive test space	colspan="2"	180mm
Net distance between compressive columns	colspan="2"	180mm
Machine dimensions	colspan="2"	1210×470×1220mm
Net weight	colspan="2"	300kg

Product Configuration (Subject to final order):

Serial Number	Name	Description	Quantity
1	Testing machine main unit	-	1 unit
2	Servo closed-loop control system	-	1 set
3	Servo hydraulic system	-	1 set
4	Computer	Commercial	1 unit
5	Compressive platen	-	1 set
6	Compressive fixture	-	1 set
7	Flexural fixture	-	1 set
8	SmartTest operating system	-	1 set
9	1T load sensor	-	1 set
10	30T load sensor	-	1 set
11	Mouse and keyboard	-	1 set
12	Instruction manual	-	1 copy
