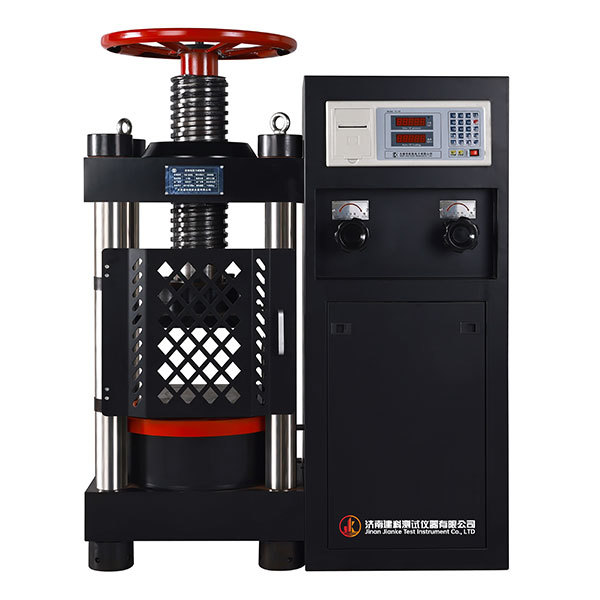

YES-2000/YES-3000 Fully Automatic Manhole Cover Pressure Testing Machine

This testing machine is suitable for testing the compressive strength of materials such as mortar, hollow bricks, cement, cement products, refractory bricks, concrete, and stone. With additional fixtures, it can also complete the flexural strength test of concrete specimens.

Classification :

Hydraulic pressure testing machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Purpose:

Standards Compliance:

GB/T 2611: General Technical Requirements for Testing Machines
GB/T 50081: Standard for Test Methods of Mechanical Properties of Ordinary Concrete
JJG 139: Verification Regulation of Tension, Compression and Universal Testing Machines
GB/T 50081-2019: Standard for Test Methods of Mechanical Properties of Ordinary Concrete
SL 352-2012: Specification for Testing of Hydraulic Concrete
GB/T 50107-2010: Standard for Inspection and Evaluation of Concrete Strength
GB 50164-2011: Standard for Quality Control of Concrete
GB/T 8239-2014: Small-sized Ordinary Concrete Blocks
GB/T 4111-2013: Test Methods for Small Hollow Concrete Blocks
GB/T 15229-2011: Lightweight Aggregate Concrete Small Hollow Blocks
GB/T 28635-2012: Concrete Paving Blocks
GB/T 11968-2006: Autoclaved Aerated Concrete Blocks
GB/T 13544-2011: Fired Perforated Bricks and Perforated Blocks
GB/T 2542-2012: Test Methods for Masonry Bricks
GB/T 13545-2014: Fired Hollow Bricks and Hollow Blocks
GB/T 5101-2017: Fired Common Bricks
JGJ/T 294-2013: Technical Specification for Strength Testing of High-Strength Concrete
GB/T 17671-2021: Test Method for Strength of Cement Mortar
(Not listed in detail; can be added as needed)

Product Features:

Adopts a four-column structure with high rigidity and stable testing performance.
Equipped with a digital display instrument, which can set functions such as specimen size and quantity, and data can be saved.
Built-in thermal micro-printer for printing test data.
Loading and unloading of the equipment are realized through the oil feeding valve and oil return valve, with simple operation.

Main Specifications:

Item/Index/Model	YES-2000	YES-3000
Maximum test force of testing machine	2000kN	3000kN
Accuracy class of testing machine	colspan="2"	Class 1
Relative error of test force indication	colspan="2"	Within ±1%
Cylinder structure	colspan="2"	Single-acting cylinder
Maximum piston stroke	colspan="2"	80mm
Size of upper and lower pressure plates	colspan="2"	290x230mm
Test space	360mm	400mm
Power supply	colspan="2"	380V±10%, 1kW
Machine dimensions	850x460x1500mm	1000x560x1600mm
Net weight	650kg	1200kg

Product Configuration (Subject to final order):

Serial Number	Name	Description	Quantity
1	Integrated main machine	Four-column	1 set
2	Sensor	2000KN/3000kN	1 piece
3	Digital display instrument	-	1 set
4	Instruction manual and certificate	Chinese/English	1 set
