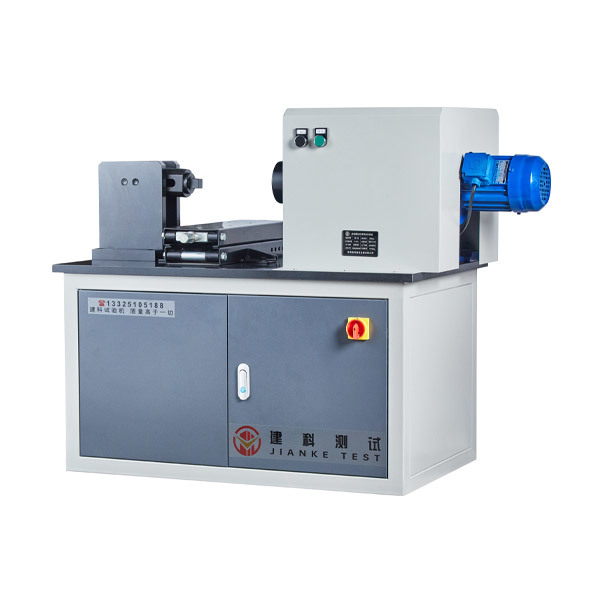

YH-24 High Strength Bolt Anti-Slip Plate Tightening Machine

It is a special equipment for fastening slip plates during bolt anti-slip tests.

Classification :

Steel Plate Bolt Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

It is a special equipment for fastening slip plates during bolt anti-slip tests.

Standards Compliance:

GB/T 1231 High-strength Large Hexagon Head Bolts, Large Hexagon Nuts, Washers and Technical Conditions for Steel Structures

GB 50205 Code for Acceptance of Construction Quality of Steel Structure Engineering

Product Features:

Bolts are tightened and disassembled by the rotation of a reducer driven by a motor;

Features include compact structure, simple operation, time and labor saving, easy maintenance, stable operation and safety;

Product Parameters:

Serial Number	Item	Technical Indicators
1	Output torque	2000nm
2	Working disc rotation speed	1r/min
3	Machine dimensions	1290850900mm
4	Machine weight	200Kg
5	Power supply	380V
6	Power	0.37kW

Product Configuration:

Serial Number	Name	Quantity
1	Main machine	1 set
2	Force application sleeves	6 pieces
3	Force application square shaft	1 piece
4	Instruction manual, certificate of conformity, packing list	1 set
