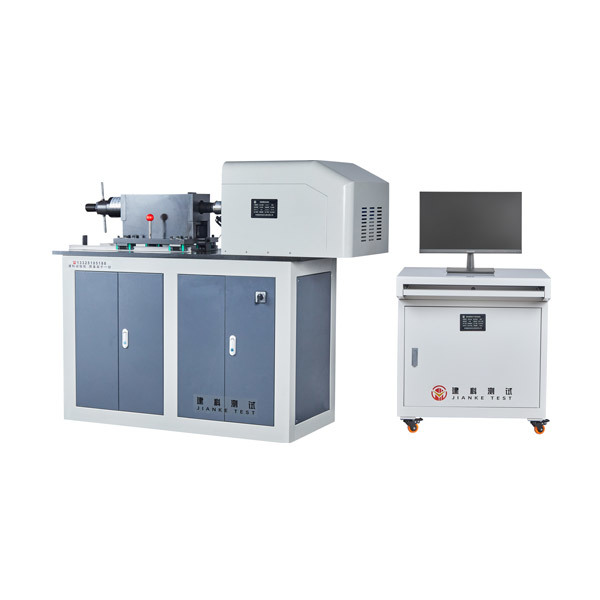

YJZ-500E High Strength Bolt Tester
YJZ-500E High Strength Bolt Tester

YJZ-500E High Strength Bolt Tester

Used for axial force inspection of large hexagon high-strength bolt connections, construction torque inspection of bolt connections, torque coefficient re-inspection of bolt connections, pre-tension re-inspection of torsional-shear type high-strength bolt connections, and construction torque inspection of torsional-shear type high-strength bolt connections. The software automatically calculates average axial force, average torque, average torque coefficient, standard deviation, and coefficient of variation, etc. It displays torque coefficients, axial force curves, torque curves, etc., and also has functions such as parameter setting, calibration, data report printing, output, and query.

Classification :

Steel Plate Bolt Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

Related Products
Online Message

PRODUCT DETAILS

Used for axial force inspection of large hexagon high-strength bolt connections, construction torque inspection of bolt connections, torque coefficient re-inspection of bolt connections, pre-tension re-inspection of torsional-shear type high-strength bolt connections, and construction torque inspection of torsional-shear type high-strength bolt connections. The software automatically calculates average axial force, average torque, average torque coefficient, standard deviation, and coefficient of variation, etc. It displays torque coefficients, axial force curves, torque curves, etc., and also has functions such as parameter setting, calibration, data report printing, output, and query.

Standards Compliance:

GB 50205 Code for Acceptance of Construction Quality of Steel Structure Engineering

GB/T 5782 Hexagon Head Bolts

GB/T 1231 High-strength Large Hexagon Head Bolts, Large Hexagon Nuts, Washers and Technical Conditions for Steel Structures

GB/T 3632 Torsional-shear Type High-strength Bolt Connections for Steel Structures

GB/T 3098.1 Mechanical Properties of Fasteners - Bolts, Screws and Studs

Product Features:

Equipped with a torsional-shear electric wrench to complete torsional-shear type high-strength bolt tests;

Equipped with a bolt anti-slip plate tightening machine, which can complete the automatic clamping function of the pre-tightening force of the anti-slip coefficient detector;

Convenient push-pull movable cover makes the test process safer;

Product Parameters:

Serial Number Item Technical Indicators
1 Axial force detection range 20-500kN
2 Torque detection range 10-2000Nm
3 Bolt specifications M12-M30
4 Bolt length 55mm-280mm
5 Axial force test accuracy ±1.0%
6 Torque test accuracy ±1.0%
7 Voltage 220V

Product Configuration:

Serial Number Name Quantity
1 Main machine 1 set
2 Controller with power cord and signal cable 1 set
3 Axial force sensor with signal cable 1 set
4 Torque sensor with signal cable 1 set
5 Torque sockets M16, 20, 22, 24, 27, 30 1 set
6 Bolt outer baffles M16, 20, 22, 24, 27, 30 1 set
7 Bolt inner baffles M16, 20, 22, 24, 27, 30 1 set
8 Anti-rotation inserting plates M16, 20, 22, 24, 27, 30 1 set
9 Commercial computer (ASUS/Lenovo) 1 set
10 Equipment files (instruction manual, certificate of conformity, packing list) 1 set
