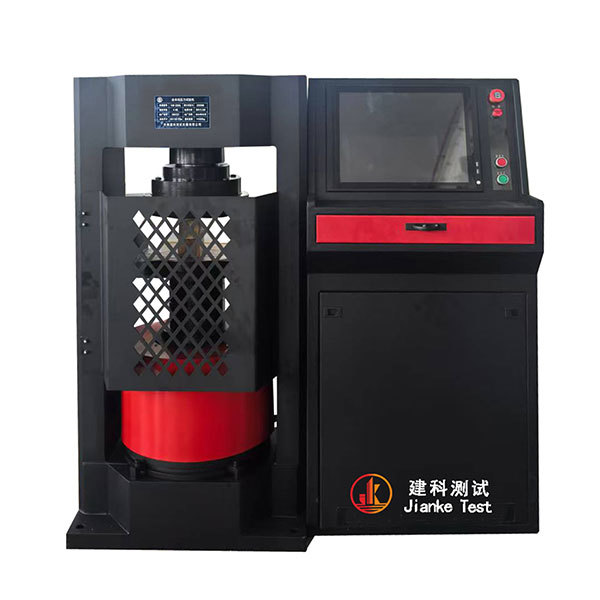

YAW-1000/YAW-2000/YAW-3000 Fully Automatic Manhole Cover Pressure Testing Machine
Classification :
PRODUCT DETAILS
Applications:
This microcomputer-controlled electro-hydraulic servo pressure testing machine features an integrated main unit and control frame. It is suitable for compression testing of cement, concrete, and other materials. It is an ideal testing instrument for industrial and mining enterprises, commodity inspection and arbitration, scientific research institutions, colleges and universities, and engineering quality supervision stations. The YAW pressure testing machine offers many advantages, including stable loading, high indication accuracy, fast oil return during unloading, and exceptional overall rigidity.
Based on standards:
GB/T 2611 General technical requirements for testing machines
GB/T 50081 Standard for Test Methods of Mechanical Properties of Ordinary Concrete
JJG 139 Verification Procedures for Tensile, Compression, and Universal Testing Machines
GB/T 50081-
SL 352-2012 Test Procedure for Hydraulic Concrete
GB/T 50107-
GB 50164-2011 Concrete Quality Control Standard
GB/T 8239-2014 Ordinary Concrete Small Masonry Units
GB/T 4111-2013 Test Methods for Small Concrete Hollow Masonry Units
GB/T 15229-2011 Lightweight Aggregate Concrete Small Hollow Blocks
GB/T 28635-2012 Concrete Pavement Bricks
GB/T 11968-2006
/span>
GB/T 13544-2011 Sintered Porous Bricks and Porous Masonry Blocks
GB/T 2542-2012 Test Methods for Masonry Bricks
GB/T 1 3545-2014 Sintered Hollow Bricks and Hollow Blocks
GB/T 5101-2017 Sintered Ordinary Bricks
JGJ/T 294-2013 Technical Specification for Strength Testing of High-Strength Concrete
Not Enumerated Can be added at will
Product Features:
The pressure-bearing section is a one-piece cast frame structure, with upper and lower crossbeams integrated.
A dust cover is installed between the piston and cylinder.
A material tray is installed on the piston guard to remove chips after the specimen is crushed.
The engraved lines on the lower pressure plate are used for specimen positioning.
The compression space is adjusted using spacers.
Main Specifications:
| Project | YAW-1000 | YAW-2000 | YAW-3000 |
| Maximum Test Force of Testing Machine | 1000KN | 2000KN | 3000KN |
| Accuracy Level | Level 0.5 | Level 0.5 | Level 0.5 |
| Relative Error of Test Force Indication | Within ±0.5% | Within ±0.5% | Within ±0.5% |
| Maximum Clearance Compressed | 320mm | 320mm | 360mm |
| Test Internal Width | 360mm | 360mm | 360mm |
| Maximum piston stroke | 50mm | 50mm | 50mm |
| Power supply | 380V | 380V | 380V |
| Dimensions (L x W x H) | 1070 x 420 x 1250mm | 1070 x 420 x 1250mm | 1200×550×1400mm |
| Net Weight | 800kg | 800kg | 1300kg |
Subject to final order):
| Serial Number | Name | Description | Quantity |
| 1 | Frame-type main unit | Integrally cast | 1 unit |
| 2 | Servo controller | Servo type | 1 set |
| 3 | Servo oil source | 1 set | |
| 4 | Sensor | 1000kN/2000kN/3000kN | 1 unit |
| 5 | Industrial Computer | Brand | 1 unit |
| 6 | Spacer | Combined Type | 1 set |
| 7 | Keyboard and Mouse | Wireless | 1 set |
| 8 | Measurement and Control Software | Pre-installed on the computer | 1 set |
| 9 | Instruction Manual and Certificate of Conformity | Chinese/English | 1 set |
