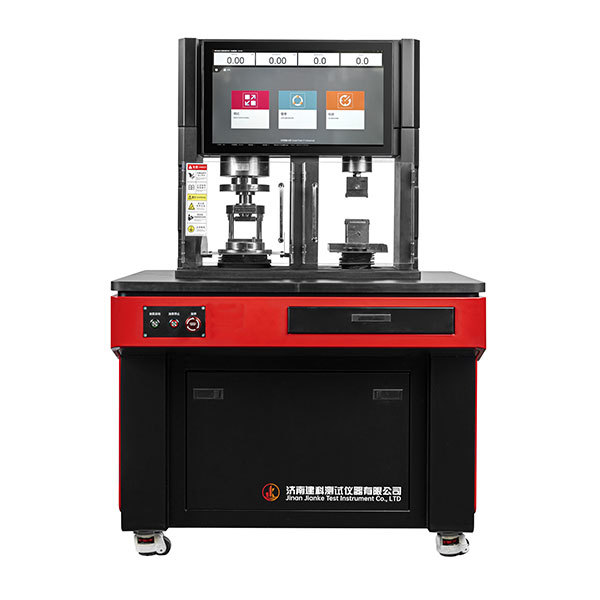

YAW-300SS Automatic Manhole Cover Pressure Testing Machine

Microcomputer-controlled integrated compressive and flexural testing machine, adopting an integral cast bidirectional cylinder structure and a flexural electric cylinder structure, with super rigidity and permanent non-deformation. It features control modes such as constant speed test force, constant speed stress, and test force maintenance. The product has the characteristics of high precision, superior performance, high reliability, and easy operation.

Classification :

Hydraulic pressure testing machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

General Function Description:

Compliance Standards:

GB/T 17671 "Test Method for Strength of Cement Mortar"
GB/T 16825.1 "Verification of Static Uniaxial Testing Machines - Part 1: Verification and Calibration of Force Measuring Systems for Tension and/or Compression Testing Machines"

Product Features:

High-configured 21.5-inch touch industrial control computer with a unique SmartTest operating interface for a smooth user experience.
300kN and 10kN high-precision load sensors.
Integral cast frame with super rigidity and good stability.
Transparent explosion-proof safety net ensures visibility and safety during the test.
Flexural loading uses an electric cylinder to ensure test accuracy and speed (compression and flexure can be performed simultaneously).
Laboratory-grade tabletop, waterproof, moisture-proof and corrosion-resistant.
Compressive loading adopts a bidirectional cylinder structure, making the test more convenient and efficient.
Piston pump with ultra-low noise, high efficiency and stability; the test process is quiet, providing a quiet environment for the laboratory. It uses 220V household electricity, which is energy-saving and environmentally friendly.
Multi-functional casters make the machine easy to move and quickly positioned.

Product Parameters:

Parameter	Flexural	Compressive
Maximum test force of the testing machine	10000N	300kN
Accuracy class of the testing machine	colspan="2"	Class 0.5
Test force measurement range	colspan="2"	0.5%—100%FS
Relative error of test force indication	colspan="2"	Within ±0.5%
Test force resolution	colspan="2"	1/±300000 of the maximum test force, with constant resolution throughout the range
Piston speed adjustment range	colspan="2"	6—80mm/min
Maximum piston stroke	60mm	80mm
Cylinder structure	Electric cylinder	Bidirectional cylinder
Power supply	colspan="2"	220V±10% 50Hz; 0.75kW
Machine dimensions	colspan="2"	970×675×1450mm
Net weight	colspan="2"	350kg

Product Configuration (Subject to final order):

Serial Number	Name	Description	Quantity
1	Testing machine main unit	-	1 unit
2	Full servo closed-loop control system	-	1 set
3	Servo hydraulic system (servo motor + oil pump valve group)	-	1 set
4	Touch industrial control computer	21.5 inches	1 unit
5	Compressive platen	-	1 set
6	Compressive fixture	-	1 set
7	Flexural fixture	-	1 set
8	SmartTest operating system	-	1 set
9	1T load sensor	-	1 set
10	30T load sensor	-	1 set
11	Mouse and keyboard	-	1 set
12	Instruction manual	-	1 copy
