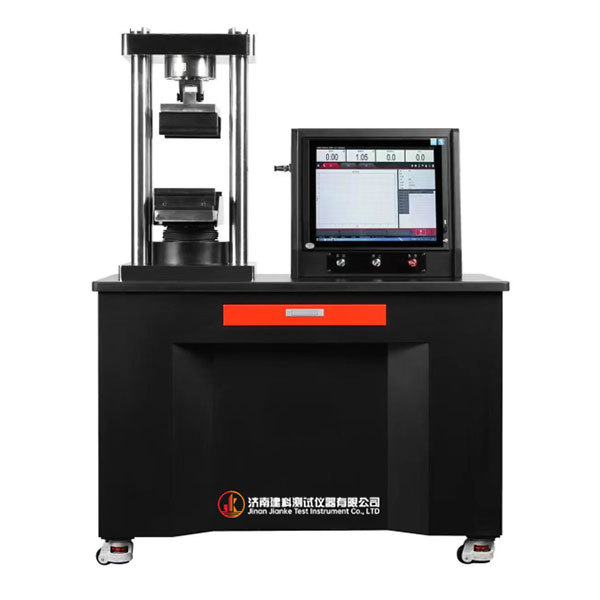

YAW-300Z Automatic Manhole Cover Pressure Testing Machine

Microcomputer-controlled flexural testing machine, with a two-column structure for compression, used for flexural tests of samples such as concrete and bricks.

Classification :

Hydraulic pressure testing machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

General Function Description:

Microcomputer-controlled flexural testing machine, with a two-column structure for compression, used for flexural tests of samples such as concrete and bricks.

Compliance Standards:

GB/T 2611: General Technical Requirements for Testing Machines
GB/T 50081: Standard for Test Methods of Mechanical Properties of Ordinary Concrete
JJG 139: Verification Regulation of Tension, Compression and Universal Testing Machines
GB/T 50081-2019: Standard for Test Methods of Mechanical Properties of Ordinary Concrete
SL 352-2012: Specification for Testing of Hydraulic Concrete
GB/T 50107-2010: Standard for Inspection and Evaluation of Concrete Strength
GB 50164-2011: Standard for Quality Control of Concrete
GB/T 8239-2014: Small-sized Ordinary Concrete Blocks
GB/T 4111-2013: Test Methods for Small Hollow Concrete Blocks
GB/T 15229-2011: Lightweight Aggregate Concrete Small Hollow Blocks
GB/T 28635-2012: Concrete Paving Blocks
GB/T 11968-2006: Autoclaved Aerated Concrete Blocks
GB/T 13544-2011: Fired Perforated Bricks and Perforated Blocks
GB/T 2542-2012: Test Methods for Masonry Bricks
GB/T 13545-2014: Fired Hollow Bricks and Hollow Blocks
GB/T 5101-2017: Fired Common Bricks
JGJ/T 294-2013: Technical Specification for Strength Testing of High-Strength Concrete
GB/T 17671-2021: Test Method for Strength of Cement Mortar
(Not listed in detail; can be added as needed)

Product Features:

17-inch touch industrial control computer with a unique SmartTest operating interface for a smooth user experience.
Adopts a two-column structure, meeting test performance requirements while making the equipment highly cost-effective.
Uses a single-acting cylinder structure.
Multi-functional casters make the machine easy to move and quickly positioned.
300kN high-precision load sensor with 0.5 class test accuracy.
The hydraulic system is equipped with a servo motor and radial piston pump, featuring ultra-low noise, high efficiency and stability. The test process is quiet, providing a quiet environment for the laboratory. It uses 220V household electricity for power supply, which is energy-saving and environmentally friendly.

Product Parameters:

Item/Index/Model	YAW-300Z
Maximum test force of the testing machine	300kN (compressive)
Accuracy class of the testing machine	Class 0.5
Test force measurement range	0.5%—100%FS
Relative error of test force indication	Within ±0.5%
Test force resolution	1/±300000 of the maximum test force, with constant resolution throughout the range
Piston speed adjustment range	6—80mm/min
Maximum piston stroke	80mm
Cylinder structure	Single-acting cylinder
Power supply	220V±10% 50Hz; 0.75kW
Machine dimensions	1200×630×1550mm
Net weight	300kg

Product Configuration (Subject to final order):

Serial Number	Name	Description	Quantity
1	Testing machine main unit	-	1 unit
2	YAW-Z full servo closed-loop control system	-	1 set
3	Servo hydraulic system (servo motor + oil pump valve group)	-	1 set
4	Industrial control computer (mainstream high configuration)	-	1 unit
5	Compressive platen	-	1 set
6	Flexural fixture	-	1 set
7	SmartTest operating system	-	1 set
8	1T load sensor	-	1 set
9	30T load sensor	-	1 set
10	Mouse and keyboard	-	1 set
11	Instruction manual	-	1 copy
