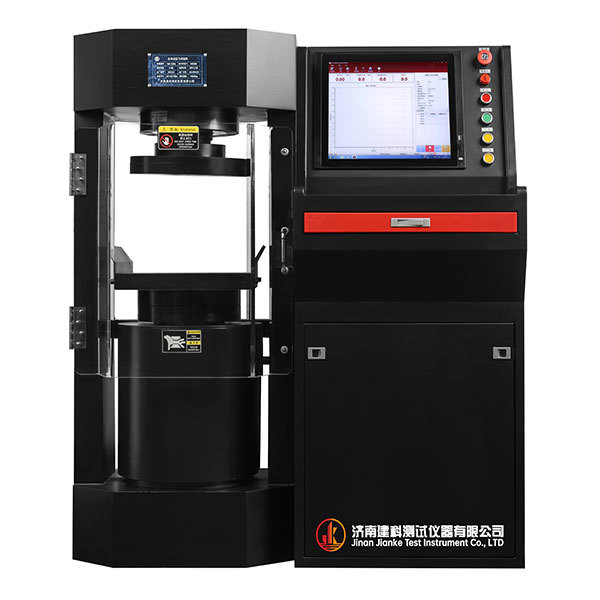

YAW-2000DS/ YAW-3000DS Automatic Manhole Cover Pressure Testing Machine

The YAW-DS series microcomputer-controlled electro-hydraulic servo pressure testing machine is an electro-hydraulic servo pressure testing machine with force closed-loop control, featuring constant stress control and loading holding functions. The unique dual-pump technology makes the test more efficient and suitable for long-term continuous work. This series of testing machines is applicable for compressive strength tests of cement, concrete, and rock. With appropriate fixtures and measuring devices, it can meet the requirements of concrete splitting tests, flexural tests, and static elastic modulus tests.

Classification :

Hydraulic pressure testing machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

General Function Description:

The machine has an overall cast super-rigid structure, ensuring stable performance. It is widely used in engineering quality inspection, research institutes, colleges and universities, and the metallurgical industry.

Compliance Standards:

GB/T 16825.1 "Verification of Static Uniaxial Testing Machines - Part 1: Verification and Calibration of Force Measuring Systems for Tension and/or Compression Testing Machines"
GB/T 50081 "Standard for Test Methods of Mechanical Properties of Ordinary Concrete"

Product Features:

Made of integrated high-strength structure with precision machining, featuring super rigidity to ensure the stability of the testing machine.
Equipped with high-precision Class 0.5 load sensor, with high accuracy, good repeatability, and excellent long-term stability.
Transparent explosion-proof safety net ensures visibility and safety during the test.
Low-pressure bidirectional oil cylinder guarantees durability and stability under various working conditions.
17-inch touch industrial control computer with a unique SmartTest operating interface for a smooth user experience.
The cabinet can be optional as horizontal or vertical according to customer needs.
The hydraulic system is equipped with a servo motor and radial piston pump, with ultra-low noise, slow oil temperature rise, high efficiency and stability. The test process is quiet, providing a quiet environment for the laboratory. It uses 220V household electricity for power supply, which is energy-saving and environmentally friendly.
Additionally, matched with a large-displacement auxiliary gear pump, greatly improving work efficiency.

Product Parameters:

Item/Index/Model	YAW-2000DS	YAW-3000DS
Maximum test force of testing machine	2000kN	3000kN
Accuracy class	colspan="2"	Class 0.5
Relative error of test force indication	colspan="2"	Within ±0.5%
Test force measurement range	colspan="2"	1%～100%FS
Maximum net compression space	320mm	340mm
Effective test width	360mm	400mm
Maximum piston stroke	colspan="2"	200mm
Size of upper and lower pressure plates	colspan="2"	Φ300mm
Power supply	colspan="2"	220V±10% 50Hz；2.3kW
Overall dimensions (L×W×H)	1070×400×1250mm	1300×500×1500mm
Net weight	1300kg	2300kg

Product Configuration (Subject to final order):

Serial Number	Name	Description	Quantity
1	Testing machine main unit	-	1 unit
2	YAW-DS full servo closed-loop control system	-	1 set
3	Servo hydraulic system	Servo motor + oil pump valve group	1 set
4	Industrial control computer	Mainstream high configuration	1 unit
5	Φ300 compression test fixture	-	1 set
6	SmartTest operating system	-	1 set
7	Load sensor	-	1 piece
8	Mouse and keyboard	-	1 set
9	Instruction manual	-	1 copy
