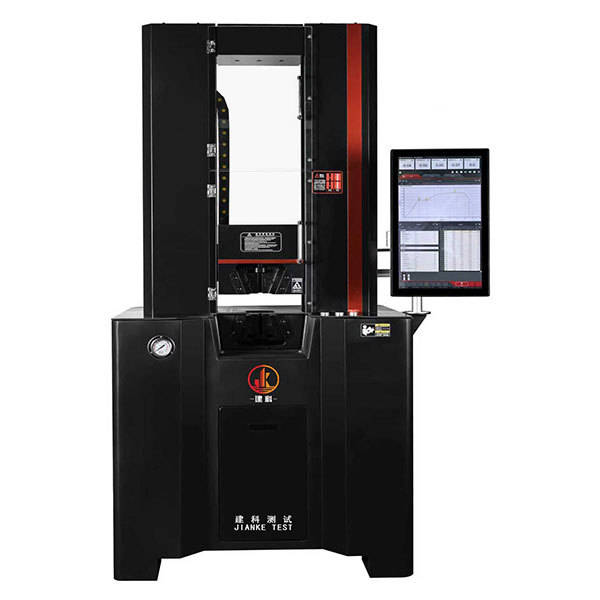

WAW-SS Electro-hydraulic servo hydraulic universal testing machine

This testing machine is mainly used for tensile, compressive, bending, shear and other tests of metal materials. Equipped with corresponding fixtures, it can be used for tensile, compressive, bending, shear, flexural and other tests of other types of samples.

Classification :

Hydraulic Universal Testing Machine

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Product Function:

Compliance Standards:

GB/T 2611: General Technical Requirements for Testing Machines
GB/T 16826: Electro-hydraulic Servo Universal Testing Machines
JJG 1063: Verification Regulation of Electro-hydraulic Servo Universal Testing Machines
GB/T 228: Standard Test Methods for Tensile Testing of Metals
GB/T 228: Metallic Materials - Tensile Testing at Ambient Temperature
GB 1499.2: Steel for Reinforced Concrete - Part 2: Hot-rolled Ribbed Bars
GB 1499.1: Hot-rolled Plain Steel Bars for Reinforced Concrete
JGJ 107: Technical Specification for Mechanical Splicing of Reinforcing Bars
JGJ/T 27: Standard Test Methods for Welded Joints of Reinforcing Bars
(Not listed in detail; can be added as needed)

Product Features:

Overall structure: Split design of main machine, servo oil source and measurement & control computer;
Measurement and control system: Composed of oil tank, oil pump, motor, control valve group, sensor, servo controller, control software, computer and other components, with high control precision and good reliability;
Space adjustment: Adopts trapezoidal lead screws on both sides to realize lifting and lowering through positive and negative rotation of the motor, with simple structure;
Crossbeam structure: Full-open crossbeam structure, convenient for dust cleaning;
Testing precision: Main machine structural parts are processed by precision machining center, servo hydraulic control system distributes flow, and high-precision spoke-type sensor measures force, ensuring the overall testing precision of the machine;
Sample clamping method: Adopts hydraulic fixture, easy to operate;
Safety protection: Equipped with protective nets in tension and compression spaces, ensuring safety without losing aesthetics.

Product Parameters:

Model	WAW-100B	WAW-300B	WAW-600B	WAW-1000B
Maximum load (KN)	100	300	600	1000
Effective range	colspan="4"	4%-100% F・S (no 档位 across full range)
Testing machine accuracy	colspan="4"	Class 1
Number of columns	colspan="4"	4 columns + 2 lead screws
Total motor power	colspan="4"	1.5kW
Relative error of indication	colspan="4"	±1%
Lower jaw lifting speed (mm/min)	colspan="4"	300
Maximum distance of tensile space (mm)	650	650	680	700
Maximum clamping width of flat samples (mm)	75mm	75mm	80mm	90mm
Clamping thickness of flat samples (mm)	0-15mm	0-15mm	0-20mm	0-40mm
Clamping diameter of round samples (mm)	Φ6-20mm	Φ10-28mm	Φ13-26mm	Φ14-40mm
Maximum distance between bending fulcrums (mm)	300mm	300mm	300mm	300mm
Maximum stroke of cylinder piston (mm)	200mm	200mm	200mm	200mm
Effective space between two pillars (mm)	350mm	400mm	450mm	490
Control cabinet (LWH) (mm)	colspan="4"	6506001400mm
Weight of control cabinet (kg)	colspan="4"	300
Main machine (LWH) (mm)	580x440x1700	630x460x1800	700x510x2000	780x540x2120
Net weight of the whole machine (kg)	1100	1300	1600	2100

Product Configuration (Subject to final order):

Name	Content	Remarks
Main machine	Including protective net, spoke-type sensor, displacement sensor	1 unit
Servo control oil source	Including embedded industrial computer	1 unit
Electronic extensometer	YYU-100	1 piece
Round jaws	-	2 pairs
Flat jaws	-	1 pair
Pressure plate	-	1 pair
Technical documents	Instruction manual, packing list, certificate of conformity	1 set
Testing machine software	Pre-installed in the computer	1 set

Product Delivery Time: 20 working days after the contract takes effect

Product Warranty Period: 1 year after acceptance

Product After-sales Service:

Dispatch professional personnel to the site for free commissioning of the product and training for operators.
Enter the free warranty period after acceptance. The free warranty period of the product is 1 year.
Provide lifetime maintenance service, only charging for materials, labor, travel and other costs.
Provide problem solutions on the same day; if necessary, arrange on-site service within 24-72 hours.
Provide free software upgrade service for users.

User Preparation Requirements:

It is required to clearly define the detailed specifications of the test method standards referenced for the test as much as possible.
Provide samples to be tested on this machine for product testing or factory inspection.
Be responsible for receiving, storing, transporting and positioning the product.
Contact the local metrology department for equipment metering (it is better to arrange equipment metering immediately after installation and commissioning).
Provide space, power supply (380V) required for equipment installation.
40L of No. 46 anti-wear hydraulic oil.
