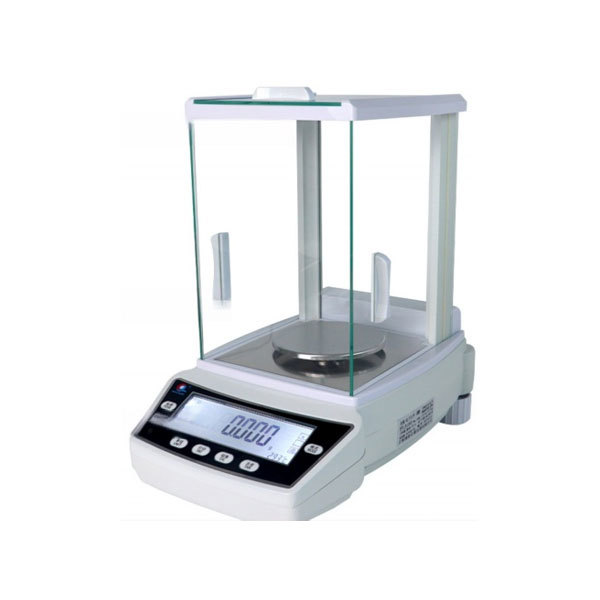

JA503/11003 Electronic Analytical Balance

High accuracy and fast response speed. External weight calibration function. Counting and percentage function. Extra-large LCD display screen.

Classification :

General Electrochemical Instruments

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

PRODUCT DETAILS

Product Features

High accuracy and fast response speed.
External weight calibration function.
Counting and percentage function.
Extra-large LCD display screen.
Stainless steel weighing pan.
Overload alarm function; users can set upper and lower weight limits according to their needs.
USB data transmission function, supporting connection to computers and printers for fast data collection.

Technical Parameters

Parameter	JA503	JA11003
Model	JA503	JA11003
Accuracy Class	Class Ⅱ (for both models)	Class Ⅱ (for both models)
Weighing Range (g)	0 ~ 500	0 ~ 1100
Actual Division Value (mg)	1 (for both models)	1 (for both models)
Maximum Permissible Error (e)	0≤m≤5×10³ (for both models)	0≤m≤5×10³ (for both models)
	5×10³ (for both models)	5×10³ (for both models)
	2×10⁵ (for both models)	2×10⁵ (for both models)
Stabilization Time (s)	≤ 8 (for both models)	≤ 8 (for both models)
Weighing Pan Diameter (mm)	Φ110 (for both models)	Φ110 (for both models)
Overall Dimensions (mm)	360×220×355 / 375×217×356 (for both models)	360×220×355 / 375×217×356 (for both models)
Net Weight (kg)	6.0 (for both models)	6.0 (for both models)
Power Supply	Input: AC 220V/50Hz; Output: 15VDC 1000mA / Input: AC 220V/50Hz; Output: DC 5V 2.5A (for both models)	Input: AC 220V/50Hz; Output: 15VDC 1000mA / Input: AC 220V/50Hz; Output: DC 5V 2.5A (for both models)
Power Consumption (V·A)	15 (for both models)	15 (for both models)
External Calibration Weight Value (g)	200	500
Warm-up Time After Startup (s)	180 (for both models)	180 (for both models)

APPLICATION FIELD

Aerospace

Automobile Manufacturing

Mechanical Manufacturing

Electronic Components

Textile Industry

Wires and Cables

CERTIFICATES

Software Registration No.11208041

Pressure Testing Machine Embedded System V1.0

Soft Registration No.11208039

Constant Temperature and HumiditySystem Control Software V1.0

A Kind of Door andWindow Performance Testing Equipment

A Concrete lmpermeability Test Device

A Temperature and Humidity Control Device

A Hydraulic Universal Testing Machine

FAQ

Q:Does the product have quality inspection before loading?

A: Of course, all our products are strictly quality tested before packing, unqualified products will be destroyed, customers can appoint a third party to inspect the products before loading as well.

Q:Can l go to your factory to visit?

A: Of course, we welcome customers from all over the world to visit our factory

Q:How many countries you already exported to?

A: We have exported to the United States, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, Somalia and other African countries. We have rich export experience, we are familiar with different market demands and can help customers avoid a lot of trouble.

Q:How long does your delivery time take?

A: Generally speaking, our delivery time is within 7-15 days, if the quantity is very large or special circumstances occur, it may be longer.

Q:What product information do l need to provide?

A: Please provide the grade, width, thickness, surface treatment requirements (if you have any) and the quantity you need to purchase.

Q: Can we get the some samples? Any charges?

A: Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost
