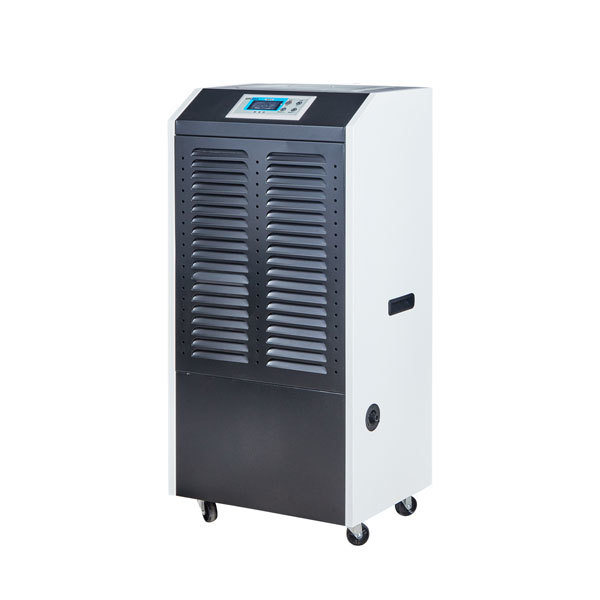

DH-8138B Dehumidifier
DH-8138B Dehumidifier

DH-8138B Dehumidifier

Constant Temperature and Humidity Control System: Used for temperature and humidity control in laboratories, industrial and mining enterprises, hospitals, archives, etc.

Classification :

Temperature And Humidity Chambers

WhatsApp : ‪+8613405319966

E-mail : sales1@jianketest.com

Related Products
Online Message

PRODUCT DETAILS

Product Functions

  • Constant Temperature and Humidity Control System: Used for temperature and humidity control in laboratories, industrial and mining enterprises, hospitals, archives, etc.

Product Features

  • Display Mode: LCD screen displays humidity (RH 10-95%) in real time.
  • Humidity Control: Microcomputer control, with 1% humidity adjustment range for free setting and control (the circuit board has a power-off memory function).
  • Defrosting Function: Microcomputer intelligent control, automatic defrosting, suitable for low-temperature environments.
  • Compressor: Adopts international brand rotary compressor, featuring low noise, reliable operation, and high energy efficiency ratio.
  • Safety Protection: Equipped with 3-minute delay protection for the compressor and sensor fault indication with error codes.
  • Refrigeration System: Uses high-efficiency copper-sheathed aluminum fin heat exchanger, which has a compact structure, good pressure resistance, and high heat exchange efficiency.
  • Fan Design: Adopts air-conditioning-specific centrifugal fan system, featuring large air volume, low friction, low noise, and long service life.
  • Drainage Method: Continuous drainage, with a matching hose of Φ15mm inner diameter.
  • Movement Method: Equipped with universal casters at the bottom.

Product Parameters

Serial No. Item Specification
1 Maximum Dehumidification Capacity 138 L/day
2 Circulating Air Volume 1000 m³/h
3 Dehumidification Area 100-200 m² (with a floor height of 3 meters)
4 Refrigerant R22
5 Air Filtration Primary efficiency nylon filter screen
6 Drain Outlet Continuous drainage (with Φ15mm inner diameter hose)
7 Overall Dimensions 480×440×870 mm
8 Operating Ambient Temperature 5～38℃
9 Power Supply AC 220V/50Hz
10 Power Consumption 1600 W
11 Net Weight ≈ 50 kg

Product Configuration

Serial No. Accessory Name Brand/Description Quantity
1 Main Unit Jianke 1 unit
2 Drain Pipe - 1 piece
3 Equipment Documents Instruction manual, certificate of qualification, packing list 1 set
