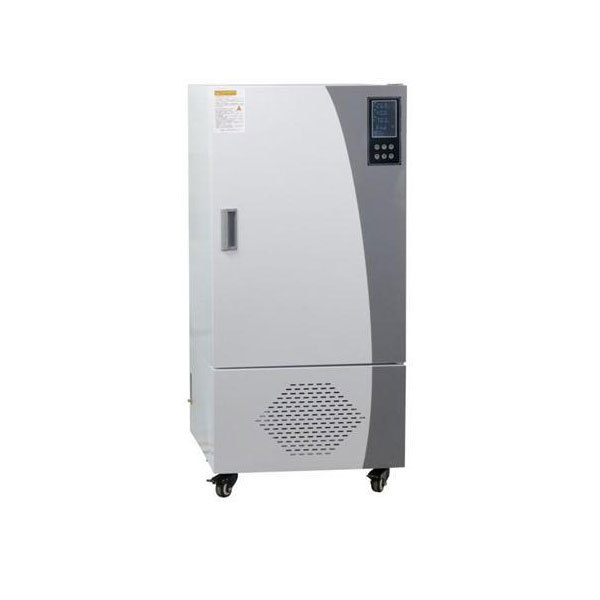

MJP-Ⅲ mold incubator

The constant temperature & humidity incubator/mold incubator is a high-precision equipment with temperature and humidity control functions. It is used for plant cultivation, breeding experiments, bacteria and microorganism cultivation.

Classification :

Temperature And Humidity Chambers

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Product Application

Product Features

Independent heating and humidification systems ensure more uniform temperature and humidity.
LCD screen for full-screen display of multiple data, with functions including power-off memory, power-off compensation, constant-value operation, timed operation, and automatic stop.
Equipped with high-quality LED tubes inside for easy sampling at night.
Double-door structure: After opening the outer door, the internal conditions of the working chamber can be observed through the inner glass door without affecting the temperature.
The outer shell is made of high-quality cold-rolled steel plate with electrostatic spraying on the surface. The inner liner is made of high-quality stainless steel plate, featuring corrosion resistance, acid resistance, and easy cleaning.
The shelves in the working chamber can be adjusted to any height.

Main Technical Parameters

Parameter Category	Specific Item	WS70III / MJP70III	WS150III / MJP150III	WS250III / MJP250III	WS350III / MJP350III
Model	-	WS70III / MJP70III	WS150III / MJP150III	WS250III / MJP250III	WS350III / MJP350III
Air Supply Method	-	All models: Forced convection	All models: Forced convection	All models: Forced convection	All models: Forced convection
Performance	Operating Temperature Range	All models: 5℃-60℃ (When using temperatures below 20℃, the room temperature must be below 25℃)	All models: 5℃-60℃ (When using temperatures below 20℃, the room temperature must be below 25℃)	All models: 5℃-60℃ (When using temperatures below 20℃, the room temperature must be below 25℃)	All models: 5℃-60℃ (When using temperatures below 20℃, the room temperature must be below 25℃)
	Temperature Resolution	All models: 0.1℃	All models: 0.1℃	All models: 0.1℃	All models: 0.1℃
	Temperature Fluctuation	All models: ±1℃	All models: ±1℃	All models: ±1℃	All models: ±1℃
	Temperature Uniformity	All models: ±1℃	All models: ±1℃	All models: ±1℃	All models: ±1℃
	Humidity Control Range	All models: 45-95%RH	All models: 45-95%RH	All models: 45-95%RH	All models: 45-95%RH
	Humidity Fluctuation	All models: ±5-8%RH	All models: ±5-8%RH	All models: ±5-8%RH	All models: ±5-8%RH
Structure	Inner Liner Material	All models: Stainless steel plate	All models: Stainless steel plate	All models: Stainless steel plate	All models: Stainless steel plate
	Outer Shell Material	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying
	Insulation Material	All models: Polyurethane	All models: Polyurethane	All models: Polyurethane	All models: Polyurethane
	Heater	All models: Stainless steel heating tube	All models: Stainless steel heating tube	All models: Stainless steel heating tube	All models: Stainless steel heating tube
	Rated Power	670W	770W	890W	990W
	Compressor	All models: Air-cooled hermetic compressor	All models: Air-cooled hermetic compressor	All models: Air-cooled hermetic compressor	All models: Air-cooled hermetic compressor
	Refrigerant	All models: R134A	All models: R134A	All models: R134A	All models: R134A
	Lamp Tube	All models: Lighting tube (for constant temp & humidity incubator) / Sterilization tube (for mold incubator)	All models: Lighting tube (for constant temp & humidity incubator) / Sterilization tube (for mold incubator)	All models: Lighting tube (for constant temp & humidity incubator) / Sterilization tube (for mold incubator)	All models: Lighting tube (for constant temp & humidity incubator) / Sterilization tube (for mold incubator)
Controller	Defrost Structure	All models: Automatic	All models: Automatic	All models: Automatic	All models: Automatic
	Humidity Control Mode	All models: Automatic	All models: Automatic	All models: Automatic	All models: Automatic
	Temperature Control Mode	All models: 30-segment LCD program	All models: 30-segment LCD program	All models: 30-segment LCD program	All models: 30-segment LCD program
	Temperature Setting Method	All models: Touch key setting	All models: Touch key setting	All models: Touch key setting	All models: Touch key setting
	Temperature Display Method	All models: Measured temperature (upper LCD display); Set temperature (lower LCD display)	All models: Measured temperature (upper LCD display); Set temperature (lower LCD display)	All models: Measured temperature (upper LCD display); Set temperature (lower LCD display)	All models: Measured temperature (upper LCD display); Set temperature (lower LCD display)
	Timer	All models: 0-9999 min/h	All models: 0-9999 min/h	All models: 0-9999 min/h	All models: 0-9999 min/h
	Operation Functions	All models: Constant-value operation, timed operation, automatic stop, program operation	All models: Constant-value operation, timed operation, automatic stop, program operation	All models: Constant-value operation, timed operation, automatic stop, program operation	All models: Constant-value operation, timed operation, automatic stop, program operation
	Program Mode	All models: Standard configuration	All models: Standard configuration	All models: Standard configuration	All models: Standard configuration
	Sensor	All models: Pt100	All models: Pt100	All models: Pt100	All models: Pt100
	Additional Functions	All models: Deviation correction, menu key lock, power-off compensation, power-off memory	All models: Deviation correction, menu key lock, power-off compensation, power-off memory	All models: Deviation correction, menu key lock, power-off compensation, power-off memory	All models: Deviation correction, menu key lock, power-off compensation, power-off memory
Specification	Internal Dimensions (D×W×H, mm)	340×400×500	400×470×780	500×570×850	560×615×1020
	External Dimensions (D×W×H, mm)	640×590×1110	700×670×1390	800×760×1460	860×800×1630
	Internal Volume	70L	150L	250L	350L
	Shelf Load Capacity	All models: 15Kg per layer	All models: 15Kg per layer	All models: 15Kg per layer	All models: 15Kg per layer
	Number of Shelves	2 pieces	3 pieces	3 pieces	3 pieces
	Power Supply	All models: 220V	All models: 220V	All models: 220V	All models: 220V
Optional Configurations	-	All models: Shelves, RS-485 interface, printer, remote control, touchscreen, wireless SMS alarm, timed printing, external communication	All models: Shelves, RS-485 interface, printer, remote control, touchscreen, wireless SMS alarm, timed printing, external communication	All models: Shelves, RS-485 interface, printer, remote control, touchscreen, wireless SMS alarm, timed printing, external communication	All models: Shelves, RS-485 interface, printer, remote control, touchscreen, wireless SMS alarm, timed printing, external communication
