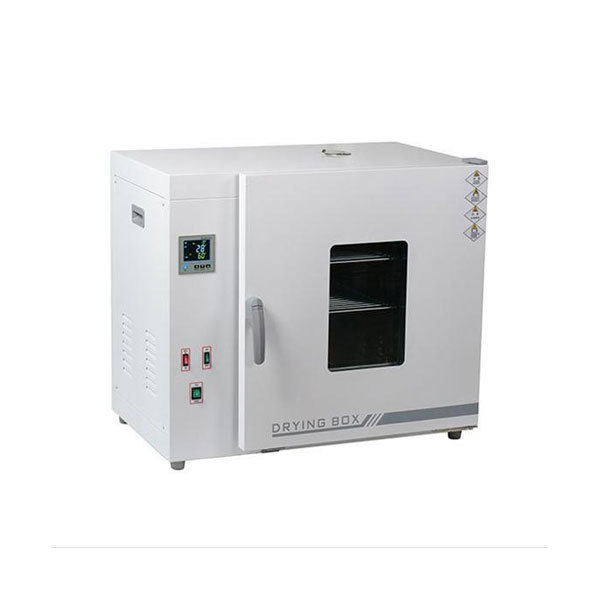

FXB101/FX101 Electric Blast Drying Oven

This product is suitable for drying, baking, wax melting, sterilization, curing, and other processes in laboratories of industrial and mining enterprises, medical and health institutions, scientific research units, and similar entities.

Classification :

Temperature And Humidity Chambers

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Application Overview

Product Features

Equipped with a large color LCD screen controlled by a microcomputer, providing digital signal display. The fan supports high and low speed control to ensure more uniform temperature inside the chamber.
Adopts PID control for heating.
Features a timing function (0-9999 minutes).
Provides over-temperature alarm and automatically cuts off heating when over-temperature occurs.
The outer shell uses electrostatic spraying technology, resulting in an attractive and smooth paint finish.
The main door is equipped with an observation window, allowing real-time observation of the heating status of items inside the chamber.
The inner liner is made of high-quality transparent plate or stainless steel, with a semi-circular arc design for easy cleaning.

Main Technical Parameters

Parameter Category	Specific Item	FX101-0 / FXB101-0	FX101-1 / FXB101-1	FX101-2 / FXB101-2	FX101-3 / FXB101-3	X101-4 / XB101-4
Model	-	FX101-0 / FXB101-0	FX101-1 / FXB101-1	FX101-2 / FXB101-2	FX101-3 / FXB101-3	X101-4 / XB101-4
Air Supply Method	-	All models: Side air duct forced convection	All models: Side air duct forced convection	All models: Side air duct forced convection	All models: Side air duct forced convection	All models: Side air duct forced convection
Performance	Operating Temperature Range	All models: Room temperature +10℃ to 250℃	All models: Room temperature +10℃ to 250℃	All models: Room temperature +10℃ to 250℃	All models: Room temperature +10℃ to 250℃	All models: Room temperature +10℃ to 250℃
	Temperature Resolution	All models: 1℃	All models: 1℃	All models: 1℃	All models: 1℃	All models: 1℃
	Temperature Fluctuation	All models: ±1℃	All models: ±1℃	All models: ±1℃	All models: ±1℃	All models: ±1℃
	Temperature Uniformity	All models: ±2.5%	All models: ±2.5%	All models: ±2.5%	All models: ±2.5%	All models: ±2.5%
Structure	Inner Liner Material	Models with "B" suffix: Stainless steel; Models without "B" suffix: High-strength carbon steel	Models with "B" suffix: Stainless steel; Models without "B" suffix: High-strength carbon steel	Models with "B" suffix: Stainless steel; Models without "B" suffix: High-strength carbon steel	Models with "B" suffix: Stainless steel; Models without "B" suffix: High-strength carbon steel	Models with "B" suffix: Stainless steel; Models without "B" suffix: High-strength carbon steel
	Outer Shell Material	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying
	Insulation Material	All models: Aluminum silicate fiber	All models: Aluminum silicate fiber	All models: Aluminum silicate fiber	All models: Aluminum silicate fiber	All models: Aluminum silicate fiber
	Heater	All models: Iron mesh heating wire	All models: Iron mesh heating wire	All models: Iron mesh heating wire	All models: Iron mesh heating wire	All models: Iron mesh heating wire
	Rated Power	1.6 kW	2.4 kW	2.4 kW	5 kW	6 kW
Controller	Temperature Setting Method	All models: Four-touch key setting	All models: Four-touch key setting	All models: Four-touch key setting	All models: Four-touch key setting	All models: Four-touch key setting
	Temperature Display Method	All models: LCD screen	All models: LCD screen	All models: LCD screen	All models: LCD screen	All models: LCD screen
	Timer	All models: 0-9999 minutes	All models: 0-9999 minutes	All models: 0-9999 minutes	All models: 0-9999 minutes	All models: 0-9999 minutes
	Operation Functions	All models: Constant-value operation, timed operation, automatic stop	All models: Constant-value operation, timed operation, automatic stop	All models: Constant-value operation, timed operation, automatic stop	All models: Constant-value operation, timed operation, automatic stop	All models: Constant-value operation, timed operation, automatic stop
	Program Mode	All models: Optional	All models: Optional	All models: Optional	All models: Optional	All models: Optional
	Additional Functions	All models: Deviation correction, menu key lock, power-off memory	All models: Deviation correction, menu key lock, power-off memory	All models: Deviation correction, menu key lock, power-off memory	All models: Deviation correction, menu key lock, power-off memory	All models: Deviation correction, menu key lock, power-off memory
	Sensor	All models: K-type thermocouple	All models: K-type thermocouple	All models: K-type thermocouple	All models: K-type thermocouple	All models: K-type thermocouple
	Motor	All models: Speed-adjustable	All models: Speed-adjustable	All models: Speed-adjustable	All models: Speed-adjustable	All models: Speed-adjustable
Specification	Internal Dimensions (D×W×H, mm)	350×350×350	350×450×450	450×550×550	500×600×750	800×800×1000
	External Dimensions (D×W×H, mm)	500×670×570	510×760×660	610×860×760	660×910×1000	1010×1210×1330
	Internal Volume	45 L	70 L	136 L	225 L	640 L
	Number of Shelves	All models: 2 pieces	All models: 2 pieces	All models: 2 pieces	All models: 2 pieces	All models: 2 pieces
	Shelf Load Capacity	All models: 15 kg	All models: 15 kg	All models: 15 kg	All models: 15 kg	All models: 15 kg
	Power Supply	All models: 220V; X101-4/XB101-4: Three-phase four-wire system	All models: 220V; X101-4/XB101-4: Three-phase four-wire system	All models: 220V; X101-4/XB101-4: Three-phase four-wire system	All models: 220V; X101-4/XB101-4: Three-phase four-wire system	All models: 220V; X101-4/XB101-4: Three-phase four-wire system
Optional Configurations	-	All models: Extended temperature control range (RT+10℃ to 300℃), over-temperature power-off timing alarm, additional shelves, RS485 interface, program temperature controller, printer, timed printing, remote control, wireless SMS alarm, external communication	All models: Extended temperature control range (RT+10℃ to 300℃), over-temperature power-off timing alarm, additional shelves, RS485 interface, program temperature controller, printer, timed printing, remote control, wireless SMS alarm, external communication
