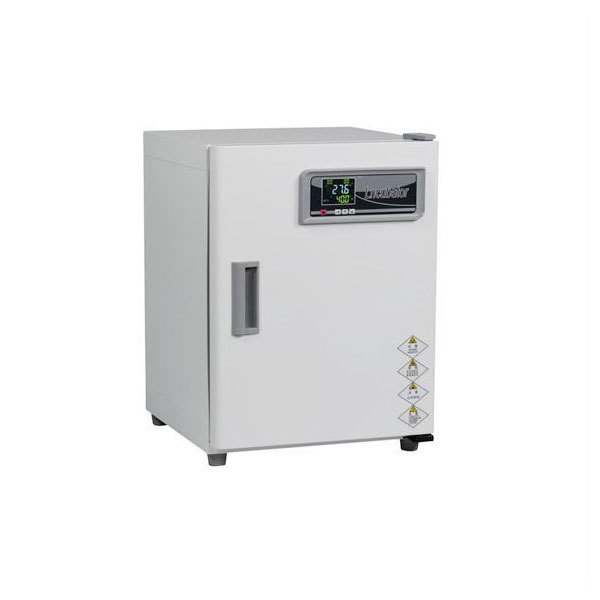

FX303/FXB303 Electric Heating Constant Temperature Incubator

It is suitable for culture experiments such as bacterial culture, breeding, and fermentation in scientific research departments of industrial and mining enterprises, medical and health institutions, biochemistry, agriculture, etc.

Classification :

Temperature And Humidity Chambers

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Application Overview

Product Features

Adopts microcomputer-controlled color screen display (except for Model 303-0), with heating PID control, featuring high temperature control accuracy and good stability.
Equipped with a timing function (0-9999 minutes), over-temperature alarm, and automatic heating cut-off when over-temperature occurs (except for Model GHP-200).
The outer shell is made of high-quality cold-rolled steel plate, and the inner liner is made of high-quality galvanized steel plate or stainless steel plate.
Uses electrostatic spraying technology, resulting in a firm and attractive paint finish.
The middle of the door is equipped with a double-layer tempered glass observation window (Models 303-1 and GHP-200 have no observation window), allowing direct observation of changes in cultured items.

Main Technical Parameters

Parameter Category	Specific Item	FX303-0 / FXB303-0	FX303-1 / FXB303-1	FX303-2 / FXB303-2	FX303-3 / FXB303-3	FX303-4 / FXB303-4	GHP-200
Model	-	FX303-0 / FXB303-0	FX303-1 / FXB303-1	FX303-2 / FXB303-2	FX303-3 / FXB303-3	FX303-4 / FXB303-4	GHP-200
Air Circulation Method	-	All models: Natural convection	All models: Natural convection	All models: Natural convection	All models: Natural convection	All models: Natural convection	All models: Natural convection
Performance	Operating Temperature Range	Room temperature +5-65℃	Room temperature +5-65℃	Room temperature +5-65℃	Room temperature +5-65℃	Room temperature +5-65℃	Room temperature +5-45℃
	Temperature Resolution	All models: 0.1℃	All models: 0.1℃	All models: 0.1℃	All models: 0.1℃	All models: 0.1℃	All models: 0.1℃
	Temperature Fluctuation	All models: ±0.5℃	All models: ±0.5℃	All models: ±0.5℃	All models: ±0.5℃	All models: ±0.5℃	All models: ±0.5℃
	Temperature Uniformity	All models: ±1.5℃	All models: ±1.5℃	All models: ±1.5℃	All models: ±1.5℃	All models: ±1.5℃	All models: ±1.5℃
Structure	Inner Liner Material	All models: Suffix "B": Stainless steel liner; No suffix "B": Galvanized steel plate	All models: Suffix "B": Stainless steel liner; No suffix "B": Galvanized steel plate	All models: Suffix "B": Stainless steel liner; No suffix "B": Galvanized steel plate	All models: Suffix "B": Stainless steel liner; No suffix "B": Galvanized steel plate	All models: Suffix "B": Stainless steel liner; No suffix "B": Galvanized steel plate	All models: Suffix "B": Stainless steel liner; No suffix "B": Galvanized steel plate
	Outer Shell Material	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying	All models: Cold-rolled steel plate with electrostatic spraying
	Insulation Material	All models: Aluminum silicate fiber	All models: Aluminum silicate fiber	All models: Aluminum silicate fiber	All models: Aluminum silicate fiber	All models: Aluminum silicate fiber	All models: Aluminum silicate fiber
	Heater	All models: Iron-chromium heating wire	All models: Iron-chromium heating wire	All models: Iron-chromium heating wire	All models: Iron-chromium heating wire	All models: Iron-chromium heating wire	All models: Iron-chromium heating wire
	Rated Power	0.4 kW	0.4 kW	0.4 kW	0.5 kW	0.6 kW	0.1 kW
Controller	Temperature Setting Method	Four-touch key setting	Four-touch key setting	Four-touch key setting	Four-touch key setting	Four-touch key setting	-
	Temperature Control Mode	PID control	PID control	PID control	PID control	PID control	-
	Timer	0-9999 minutes	0-9999 minutes	0-9999 minutes	0-9999 minutes	0-9999 minutes	-
	Operation Functions	Constant-value operation, timed operation, power-off memory	Constant-value operation, timed operation, power-off memory	Constant-value operation, timed operation, power-off memory	Constant-value operation, timed operation, power-off memory	Constant-value operation, timed operation, power-off memory	-
	Program Mode	Optional	Optional	Optional	Optional	Optional	-
	Additional Functions	Deviation correction, menu key lock, power-off memory	Deviation correction, menu key lock, power-off memory	Deviation correction, menu key lock, power-off memory	Deviation correction, menu key lock, power-off memory	Deviation correction, menu key lock, power-off memory	-
	Sensor	All models: CU50 sensor	All models: CU50 sensor	All models: CU50 sensor	All models: CU50 sensor	All models: CU50 sensor	All models: CU50 sensor
Specification	Internal Dimensions (mm)	250×250×250	360×360×420	400×400×500	500×500×600	600×600×700	200×250×200
	External Dimensions (mm)	420×515×460	519×460×630	560×510×710	600×640×820	700×740×920	265×340×390
	Internal Volume	15 L	54 L	80 L	150 L	250 L	10 L
	Shelf Load Capacity	All models: 15 kg	All models: 15 kg	All models: 15 kg	All models: 15 kg	All models: 15 kg	All models: 15 kg
	Number of Shelves	1 piece	2 pieces	2 pieces	2 pieces	-	-
Power Supply	-	All models: 220V 50Hz	All models: 220V 50Hz	All models: 220V 50Hz	All models: 220V 50Hz	All models: 220V 50Hz	All models: 220V 50Hz
Optional Configurations	-	All models: Program control	All models: Program control
