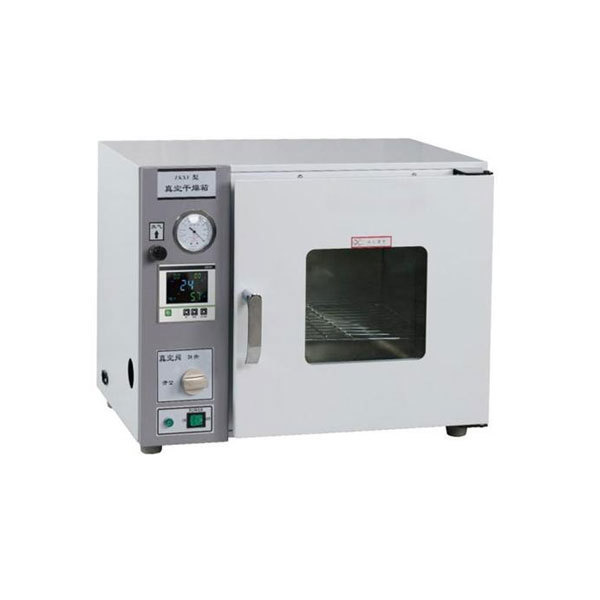

ZKXB/ZKXF Vacuum Drying Oven

It is used for drying, sterilization, and heat treatment of items under vacuum conditions in laboratories of industrial and mining enterprises, colleges and universities, scientific research institutes, and other institutions.

Classification :

Temperature And Humidity Chambers

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Application Overview

Product Features

The working chamber is made of high-quality stainless steel plate or cold-pressed steel plate, processed and treated with anti-corrosion.
The door tightness is adjustable, with a one-piece silicone gasket inside to ensure long-term stable sealing.
Double-layer tempered glass door allows clear observation of items inside the working chamber.
Equipped with a color LCD screen and PID control, featuring high temperature control accuracy.
Auxiliary menu functions include over-temperature alarm, temperature deviation correction, menu lock, and timing.

Main Technical Parameters

Parameter Category	Specific Item	ZKXF-1 / ZKXFB-1	ZKXF-2 / ZKXFB-2	ZKXFB-3
Model	-	ZKXF-1 / ZKXFB-1	ZKXF-2 / ZKXFB-2	ZKXFB-3
Operation Method	-	All models: Reduced pressure with three-sided heating	All models: Reduced pressure with three-sided heating	All models: Reduced pressure with three-sided heating
Performance	Operating Temperature Range	All models: RT+10-200℃	All models: RT+10-200℃	All models: RT+10-200℃
	Operating Vacuum Degree Range	All models: ≤133 Pa	All models: ≤133 Pa	All models: ≤133 Pa
	Temperature Resolution	All models: 0.1℃	All models: 0.1℃	All models: 0.1℃
	Temperature Fluctuation	All models: ±1℃	All models: ±1℃	All models: ±1℃
Structure	Inner Liner Material	All models: Models without suffix "B": Cold-pressed steel plate; Models with suffix "B": Stainless steel plate	All models: Models without suffix "B": Cold-pressed steel plate; Models with suffix "B": Stainless steel plate	All models: Models without suffix "B": Cold-pressed steel plate; Models with suffix "B": Stainless steel plate
	Outer Shell Material	All models: Cold-pressed steel plate with electrostatic spraying	All models: Cold-pressed steel plate with electrostatic spraying	All models: Cold-pressed steel plate with electrostatic spraying
	Insulation Material	All models: Aluminum silicate fiber	All models: Aluminum silicate fiber	All models: Aluminum silicate fiber
	Heater	All models: High-quality heating tubes (three-sided heating)	All models: High-quality heating tubes (three-sided heating)	All models: High-quality heating tubes (three-sided heating)
	Observation Window	All models: Bulletproof tempered glass	All models: Bulletproof tempered glass	All models: Bulletproof tempered glass
	Vacuum Gauge	All models: Analog (pointer-type)	All models: Analog (pointer-type)	All models: Analog (pointer-type)
	Rated Power	0.5 kW	0.7 kW	1.5 kW
Controller	Temperature Control Mode	All models: Color LCD screen with PID control	All models: Color LCD screen with PID control	All models: Color LCD screen with PID control
	Temperature Setting Method	All models: Four-touch key setting	All models: Four-touch key setting	All models: Four-touch key setting
	Timer	All models: 0-9999 minutes	All models: 0-9999 minutes	All models: 0-9999 minutes
	Operation Functions	All models: Constant-value operation, timing function, automatic stop	All models: Constant-value operation, timing function, automatic stop	All models: Constant-value operation, timing function, automatic stop
	Program Mode	All models: Optional	All models: Optional	All models: Optional
	Additional Functions	All models: Deviation correction, menu key lock	All models: Deviation correction, menu key lock	All models: Deviation correction, menu key lock
	Sensor	All models: Pt100	All models: Pt100	All models: Pt100
Safety Devices	-	All models: Over-temperature alarm	All models: Over-temperature alarm	All models: Over-temperature alarm
Specification	Working Chamber Dimensions (D×W×H, mm)	300×300×275	370×415×345	450×450×450
	External Dimensions (D×W×H, mm)	480×610×470	500×720×400	600×760×570
	Shelf Load Capacity	15 kg	-	-
	Number of Shelves	1 layer	2 layers	3 layers
	Power Supply	All models: 220V 50Hz	All models: 220V 50H
