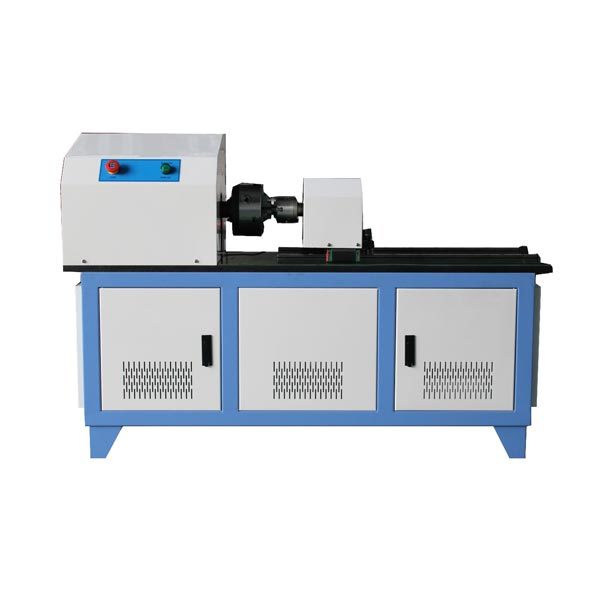

ZCNZ-2000Nm LCD Torsion Testing Machine

The electronic torsion testing machine is composed of a loading system, transmission system, data acquisition, processing, control, and display system. It is suitable for testing the mechanical properties of various torsional elastic components, structural parts, bolts, etc. The machine adopts a horizontal structure, an embedded high-performance single-chipMCU controller, liquid crystal display, and a fully Chinese operation and display interface, which makes the displayed information intuitive and easy to read. It features multi-button operation with a Chinese display interface, simplifying your operation. You can complete system parameter settings by following the sequence of the habitual prompt interface. It uses an AC servo motor and precision reducer for transmission, with the characteristics of uniform and stable loading, no impact, and accurate data acquisition and control.

Classification :

Bending Torsion Testing Machine

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Product Introduction

The whole machine utilizes a fully digitalZCTestsmart data acquisition and processing system and a liquid crystal display system, which can perform multi-point testing on the torsion angle of the specimen.

Main Technical Performance Indicators

Maximum torque(N.m): 2000

Effective side torque range(N.m): 1%-100%;

Relative error of torque indication: ±1.0%;

Torque resolution: 1/±500000;

Torsion angle measurement range: 0～1000°

Relative error of torsion angle indication: ±1.0%;

Test speed: 0.05-360°/min

Relative error of speed indication:±1.0%;

Clamping distance(mm): 0～450 (negotiable);

Power supply: AC 220V±10％, 50Hz；

Testing machine level: Level 1

Working Environment Requirements for the Testing Machine

Within the range of room temperature10℃～35℃, relative humidity ≤80%;

On a stable foundation or workbench;

In an environment without vibration and corrosive media around;

The fluctuation range of the power supply voltage should not exceed±10% of the rated voltage.

Product Configuration (subject to the final order):

Serial Number	Name	Quantity
1	Testing machine host	1 unit
2	High-precision reducer	1 unit
3	Precision CNC motor (included in automatic models)	1 set
4	Motor driver control system (included in automatic models)	1 set
5	High-precision bidirectional torsion sensor	1 set
6	High-precision angle sensor	1 piece
7	High-precision guide pair (fixed on the host)	2 sets
8	High-precision guide slider (fixed on the host)	2 sets
9	Fully digital MCU control system	1 set
10	Customized fixtures and clamping blocks	1 set
11	Random tools	1 set
12	Instruction manual	1 copy
13	Certificate of conformity	1 copy
14	Packing list	1 copy
