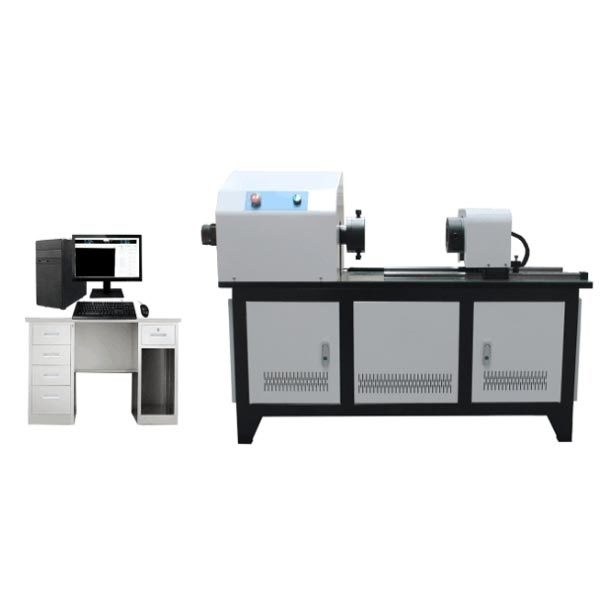

ZCNZ-W3000Nm Microcomputer Controlled Torsion Testing Machine

This machine is mainly used to test the torsional mechanical properties of metal materials, bolts, tools, finished products, structural parts, transmission shafts, components, fasteners and other specimens at room temperature or in special environments. It can also be used for torsional failure and other performance tests of non-metallic materials and finished products. The tested specimens are installed between fixtures with adjustable space, which can adapt to the torsional mechanical property tests of different tested specimens.

Classification :

Bending Torsion Testing Machine

WhatsApp : ‪+8613405319966

WhatsApp: +8613705406575

E-mail : sales1@jianketest.com

E-mail : sales2@jianketest.com

PRODUCT DETAILS

Introduction to the Testing Machine

Reference Standards:JB/T 9370-2015 "Technical Specification for Torsion Testing Machines", GB/T 10128 "Method for Torsion Testing of Metallic Materials at Room Temperature", JJG 269 "Verification Regulation for Torsion Testing Machines", etc.

Applicable Industries: Metrology and quality inspection, metallurgy and steel, machinery manufacturing, fasteners, hardware tools, auto parts, colleges and universities, research institutes and other industries.

Main Technical Performance Indicators

Optional maximum sensor range (Nm): ±3000

Torque measurement range:1%-100%FS

Minimum torque reading value (Nm): 0.01

Test torque resolution 1/±500000

Relative error of torque indication:≤±1.0% (both forward and reverse directions)

Relative repeatability error of torque:≤1.0% (both forward and reverse directions)

Rotation angle measurement range 0-10000°

Relative error of rotation angle indication:≤±0.5% (both forward and reverse directions)

Torsion angle(small angle measurement) minimum display resolution: 0.01°

Minimum rotation angle reading value:0.01°

Test speed:0.05-720°/min (2r/min), customizable

Relative error of torsion speed indication:≤±1% (both forward and reverse directions)

Repeatability error of torsion speed indication:≤1.0%

Distance between force application disc and torque disc(mm): 0～500

Specimen clamping diameter: customized according to actual specimens

Power supply:AC 220V±10％, 50Hz；

Dimensions and weight of the testing machine:1790*650*1090mm, 550kg

Specimen clamping method: standard flange chuck (customized according to actual specimens) or three-jaw chuck

Test level: Level 1

Working Environment Requirements for the Testing Machine

Within the range of room temperature10℃～35℃; for tests with strict temperature requirements, the test temperature should be: 23℃±5℃

Relative humidity not greater than80%；

Properly installed on a stable foundation;

In a clean environment without vibration, corrosive media and strong electromagnetic field interference around;

The fluctuation range of the power supply voltage should not exceed10% of the rated voltage.

Product Configuration (subject to the final order):

Serial Number	Name	Quantity
1	Torsion testing machine host (high-strength thickened steel plate)	1 unit
2	Flange chuck (customized according to specimen) or three-jaw chuck	1 set
3	High-precision linear guide rail and slider	1 set
4	Precision AC servo motor	1 set
5	AC servo motor driver control system	1 set
6	Exquisite sheet metal including base and built-in electrical parts	1 set
7	High-precision reducer	1 set
8	3000Nm high-precision bidirectional torque sensor	1 set
9	Angle sensor	1 set
10	Lenovo desktop computer	1 unit
11	Color inkjet printer	1 unit
12	Information acquisition card or acquisition control box, testing machine control software	1 set
13	Power cord, data cable, wrench and other random tools	1 set
14	Instruction manual	1 copy
15	Certificate of conformity	1 copy
16	Packing list	1 copy
